Removing and installing/replacing left charge air cooler (S63 B44 T 2) (X5 M)

WARNING: Risk of scalding! Only perform this repair work after engine has cooled down!

Necessary preliminary work:

Remove ACOUSTIC COVER .
Remove front UNDERBODY PROTECTION .
Remove the front left (front section) WHEEL ARCH COVER .
Remove FAN COWL .
Drain COOLANT .
Remove the PRESSURE SENSOR on the left charge air cooler.
Follow INSTRUCTIONS for repair work on the cooling system.

Removal:

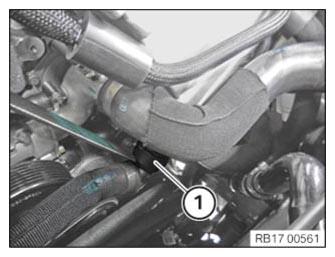

Release clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen the coolant hoses (2) from the clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen the nuts (1) and place the oil reservoir for the hydraulic pump (2) to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen the clamp (1) at the bottom of the throttle body.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

When loosening the coolant hoses from the charge air cooler, make sure that the connector remains connected to the throttle body. Coolant may not penetrate the plug connection at the throttle body.

Disconnect coolant hoses from charge air cooler using pinch-off tools (to prevent coolant from escaping).

Catch and dispose of escaping coolant.

Loosen the clamp (1) and pull off the coolant hose from the charge air cooler.

Release and disconnect coolant hoses (2).

Remove tank vent valve (3) from charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach coolant hose (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and pull off the coolant hose (1) on the left from the radiator.

Set coolant hose (1) aside.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off the left charge air cooler (1) from the exhaust turbocharger towards the front.

Feed out and remove the charge air cooler (1) towards the top.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in the right-hand charge air cooler (1).

Connect the right-hand charge air cooler (1) with the throttle body and the exhaust turbocharger.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the coolant hose (1) on the left to the radiator.

The coolant hose (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the coolant hose (1) at the bottom to the left-hand charge air cooler.

The coolant hose (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Part: Replace clamp (1).

Connect the coolant hose to the charge air cooler and secure with the clamp (1).

Connect and lock coolant hose (2).

The coolant hose (2) must engage audibly.

Install the tank vent valve (3) to the charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the clamp (1) at the bottom to the throttle body.

Tightening torque 13 71 7AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install the oil reservoir for the hydraulic pump (2) and tighten the nuts (1).

Tightening torque 32 41 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screw (1) on the left-hand charge air cooler.

Tightening torque 13 71 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the coolant hoses (2) to the clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Part: Replace clamp (1).

Secure the charge air hose between the charge air cooler and the exhaust turbocharger with the clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install ACOUSTIC COVER .
Install front WHEEL ARCH COVER (front section), left.
Install the DRIVE BELT for the alternator on the alternator.
Top up COOLANT and vent cooling system.
Top up and bleed the COOLANT FOR THE CHARGE AIR COOLER .
Install front UNDERBODY PROTECTION .
Connect BATTERY EARTH LEAD .
