Removing and installing/replacing carpet for vehicle interior (X5 M)

Necessary preliminary taste:

• Disconnect BATTERY NEGATIVE LEAD .
• Remove FRONT SEAT, PASSENGER'S SIDE (SPORT, ELECTRICAL) and FRONT SEAT, DRIVER'S SIDE (SPORT, ELECTRICAL) .
• Remove ACCELERATOR PEDAL MODULE .
• Remove CENTER CONSOLE .
• Remove TRIM PANEL FOR PEDAL MECHANISM .
• Remove lower INSTRUMENT PANEL TRIM .
• Remove COVER FOR CENTRAL BASS SPEAKER left/right.
• Remove SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, LEFT  and SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, RIGHT .
  IMPORTANT: Risk of damage!
  Pay attention to cables when cutting.

Start cuts towards center of vehicle as far as is possible. This guarantees that cutting edges are covered by storage compartment and/or dashboard.

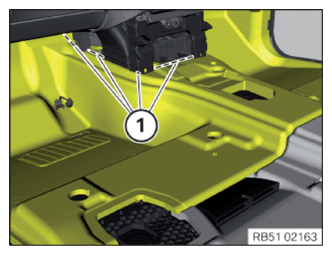

Cut out carpet along lines (1).

Remove carpet to the rear/top and feed out cable.

Installation note:

Apertures (1) serve as fixing points for fitting carpet.

Replacement:

Courtesy of BMW OF NORTH AMERICA, INC.

Lay removed carpet over new one and transfer cuts to new carpet.

Remount STORAGE NET , if necessary.
