Removing and installing/replacing side trim panel, footwell, on A-pillar, right (X5 M)
Special tools required:
- 00 9 325
Necessary preliminary tasks:
- Remove FRONT ENTRANCE COVER STRIP (INSIDE) .
- Remove INSTRUMENT PANEL TRIM, BOTTOM LEFT .

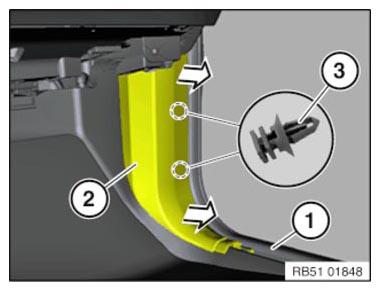

Detach edge protection (1) in area of side trim panel (2).
Detach side trim panel (2) from clips (3) in direction of arrow using special tool 00 9 325 and remove.
Installation note:
Replace faulty clips (3).
Position side trim panel (2) prefitted with clips (3) on matching holes and snap into place.
