51 16 165 Removing and installing complete center console

Necessary preliminary tasks:

IMPORTANT: Read and comply with notes on HANDLING WIRING HARNESSES and cables.

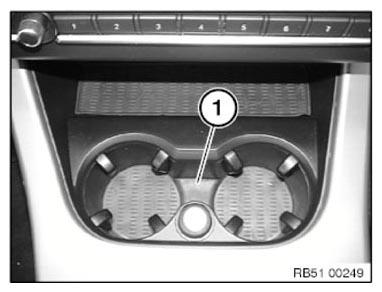

Remove inlay mat (1) of cupholder.

Fig 1: Identifying Cupholder Inlay Mat

Courtesy of BMW OF NORTH AMERICA, INC.

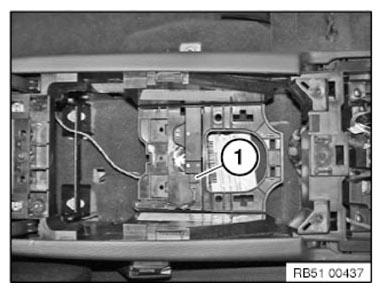

Release screws (1) on center console mount.

Tightening torque 51 16 4AZ .

Unfasten plug connection (2) and disconnect.

Detach wiring harness from central console mount.

Fig 2: Identifying Center Console Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Fig 3: Identifying Center Console Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Retaining tabs (1) will be loosened during the next work step.

Unclip the rear lower storage compartment (3) at top (2).

Fig 4: Identifying Rear Lower Storage Compartment Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully fold the rear lower storage compartment (2) back until a screwdriver can be inserted between the retaining tab (1) and housing wall (3).

Carefully lever to unlatch the retaining tabs (1) toward the inside.

If necessary, unlock existing plug connections and disconnect.

Detach bottom rear of storage compartment (3).

Fig 5: Detaching Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining tabs (1) and lugs on the entire periphery (3) at the bottom rear of storage compartment (2) must neither be missing nor damaged.

Replacement

Modify insert mat
Modify rear cover

Fig 6: Identifying Storage Compartment Tabs
Courtesy of BMW OF NORTH AMERICA, INC.

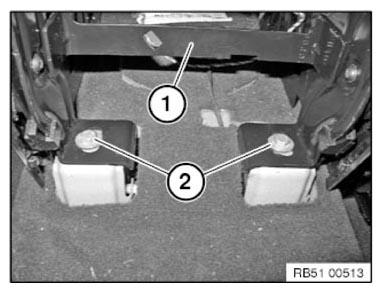

Undo screws (2) on lower support frame of center armrest (1).

Tightening torque 51 16 4AZ .

Feed out center console towards rear.

Unlock and disconnect plug connections and plug holders underneath.

Fig 7: Identifying Center Armrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.
