51 16 160 Removing and installing/replacing center console cover

Special tools required:

00 9 325

Necessary preliminary work:

Manual gearbox versions only:

Disconnect NEGATIVE TERMINAL

NOTE: Front of center console cover (1) is equipped with hook (2).

Unclip the center console cover (1) from the rear to the front using special tools 00 9 325 .

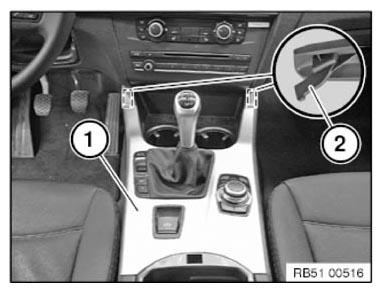

Fig 1: Identifying Center Console Cover And Hook

G09948156

Courtesy of BMW OF NORTH AMERICA, INC.

Manual gearbox versions only:

Unthread gaiter (1) from center console cover (2).

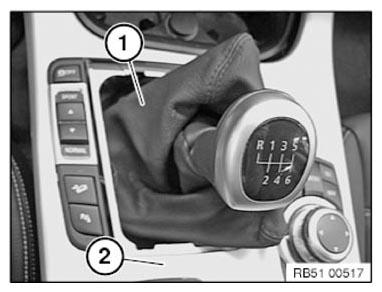

Fig 2: Identifying Gaiter And Center Console Cover

G09948157

Courtesy of BMW OF NORTH AMERICA, INC.

Version with automatic transmissions only:

IMPORTANT: Risk of damage!
To avoid scratching the center console cover (1) when removing the gear selector switch (2), mask gear selector switch (2) with yellow plastic adhesive tape.

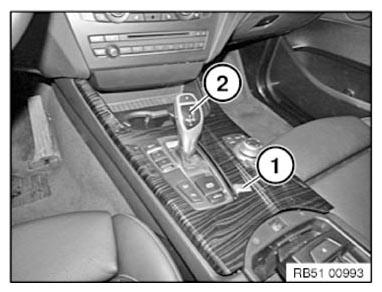

Fig 3: Identifying Center Console Cover And Gear Selector Switch

G09948158

Courtesy of BMW OF NORTH AMERICA, INC.

Remove center console cover (1) at a slant toward the rear. In the process, unlock and disconnect all plug connections (2).

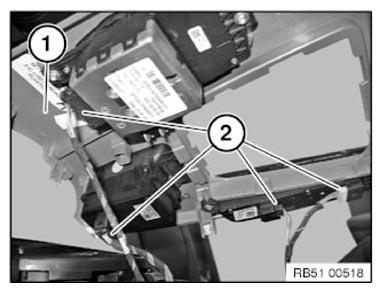

Fig 4: Identifying Center Console Cover And Plug Connections

G09948159

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining clips (1) and hook tabs (2) of center console cover (3) must not be damaged or missing.

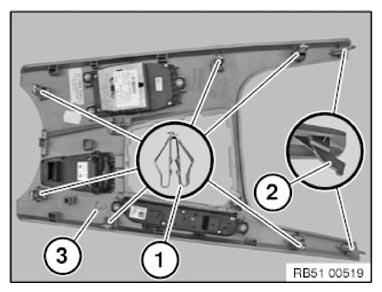

Fig 5: Identifying Center Console Cover Clips And Tabs

G09948160

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic A = version for manual gearbox
Graphic B = version for automatic transmission

Replacement

Remount front storage compartment or FRONT CONTROLLER (2)
Remount CENTER CONSOLE OPERATING FACILITY (1)

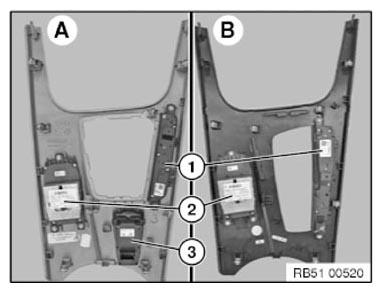

Fig 6: Identifying Front Storage Compartment And EMF Switch
Courtesy of BMW OF NORTH AMERICA, INC.

Manual gearbox versions only:

Remount EMF SWITCH (3)
