51 16 172 Removing and installing/replacing center armrest storage compartment

Release screw (1).

Unlock center armrest storage compartment (3) at points (2) and raise slightly.

Unlock and disconnect plug connections behind.

Remove center armrest storage compartment (3).

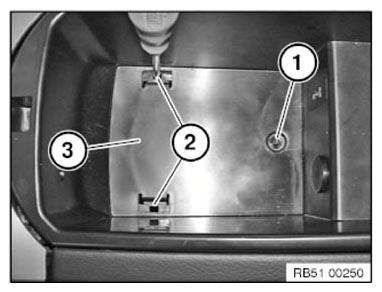

Fig 1: Identifying Armrest Storage Compartment Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• Remove USB/AUDIO INTERFACE CONNECTING SOCKET
