11 14 110 Removing and installing, sealing or replacing front gear case cover (M57T2-SCR)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 3 340

Necessary preliminary tasks:

Remove ENGINE
Remove CYLINDER HEAD .
Remove OIL SUMP
Remove VIBRATION DAMPER
Replace crankshaft RADIAL SHAFT SEAL

IMPORTANT: Protect alternator against engine oil.
Cover alternator with suitable auxiliary materials.
(Risk of damage) .
Assemble charge air hoses without grease and dry.

Release screws.

Remove gear case cover.

Fig 1: Locating Gear Case Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

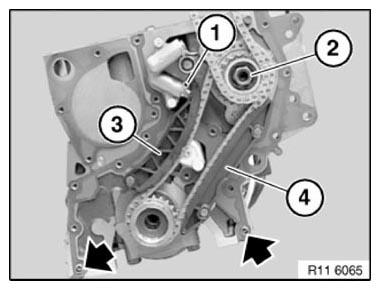

Lock chain tensioner (1) at bottom with special tool 11 3 340 and remove.

Slacken nut (2).

Tightening torque: 13 52 2AZ .

Detach tensioning rail (3).

Detach guide rail (4).

Remove sprockets and chain.

Installation note:

Check fitting sleeves (see arrows) for damage.

Fig 2: Locating Fitting Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Replace gasket.

Installation note:

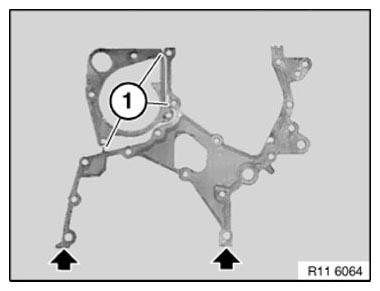

When repair work is carried out on the gear case cover, the gear case cover gasket must be cut through at the marked points (1).

Apply a thin coat of Drei Bond 1209 sealant (sourcing reference: BMW Parts Department) to ends (arrows) of gear case cover on both sides.

Fig 3: Locating Gear Case Cover Gasket Marked Points

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove COOLANT PUMP .

Fit gear case cover.

Insert all screws and pre-tighten to 5 Nm.

Tightening torque: 11 14 5AZ .

Installation note:

Screw plug

Tightening torque: 11 14 1AZ .

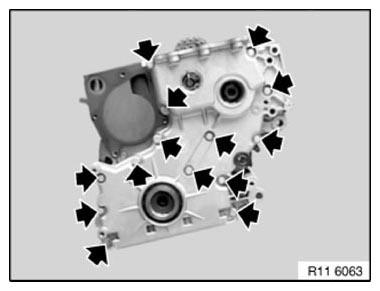

Fig 4: Locating Gear Case Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
