11 14 141 Replacing the front crankshaft seal (M57T2-SCR)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

Removing VIBRATION DAMPER

Fit special tool 11 1 212 onto crankshaft.

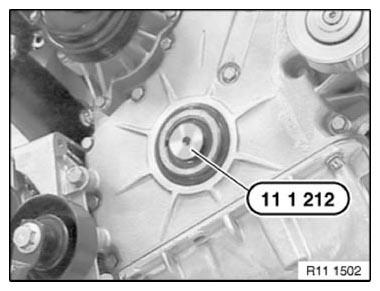

Fig 1: Identifying Special Tool (11 1 212)

Courtesy of BMW OF NORTH AMERICA, INC.

Removing crankshaft seal:

Screw in special tool 11 1 210 until it is firmly connected with crankshaft seal.

Then remove crankshaft seal by turning screw.

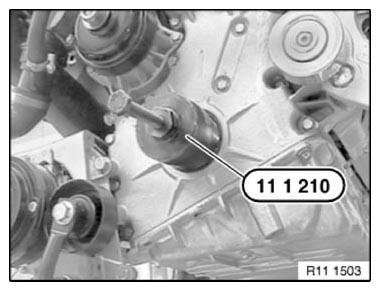

Fig 2: Identifying Special Tool (11 1 210)

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 6 470 onto crankshaft.

Lubricate special tool 11 6 470 .

IMPORTANT: Do not under any circumstances touch sealing lip of new crankshaft seal with your fingers.

Slide new crankshaft seal over special tool 11 6 470 until crankshaft seal rests against gear case cover.

Remove special tool 11 6 470 .

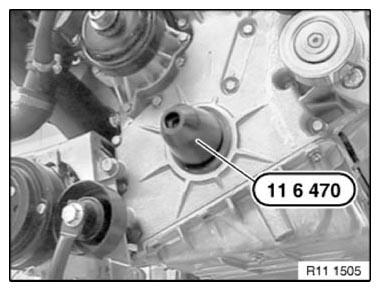

Fig 3: Identifying Special Tool (11 6 470)

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 6 490 into crankshaft and tighten down.

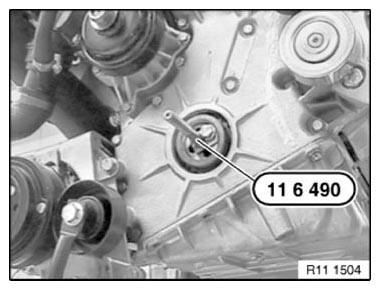

Fig 4: Identifying Special Tool (11 6 490)

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 5 110 onto crankshaft.

With special tool 11 5 110 and central nut of special tool 11 6 490 , insert crankshaft seal until it is flush with gear case cover.

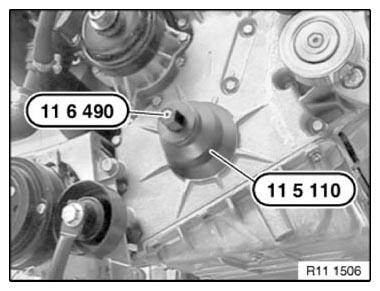

Fig 5: Identifying Special Tool (11 5 110 And 11 6 490)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check engine for leak tightness.
