11 23 010 Removing and installing/renewing vibration damper (M57T2-SCR)
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary work:
- Remove FAN COWL
- Remove alternator DRIVE BELT

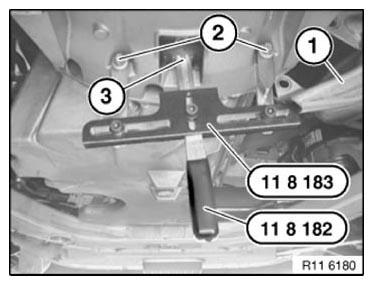

Move special tool 11 8 183 to gearbox (HP 26).
Detach exhaust bracket (1) from gearbox.
Fit special tool 11 8 183 and 11 8 182 at gearbox bolts (2) anbauen.
Adjust special tool 11 8 182 at flywheel spline (3).

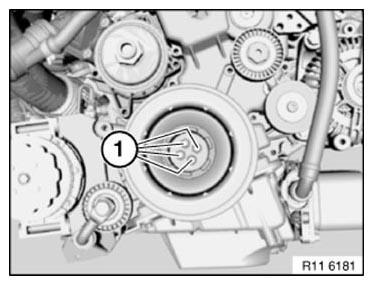

Release screws (1).
Remove vibration damper (2).
Tightening torque: 11 23 2AZ .
Installation note:
Replace screws.
Tighten screws crosswise.
