51 24 004 Adjusting rear lid lock

Necessary preliminary tasks:

Prerequisite:

Rear lid must be correctly adjusted to fit; if necessary, adjust rear lid. See 41 62 014 ADJUSTING TAILGATE .

Depending on version, press in or screw in bump stop (1) on tailgate on left and right completely.

NOTE: Operation is described in:

Removing and installing/replacing bump stops on tailgate. See 51 23... ADJUSTING/REPLACING BUMP STOPS .

Fig 1: Identifying Bump Stop
Courtesy of BMW OF NORTH AMERICA, INC.

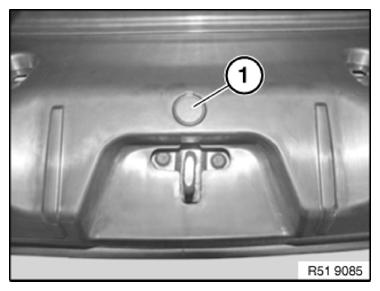

Lever out sealing cap (1).

Fig 2: Identifying Rear Lid Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

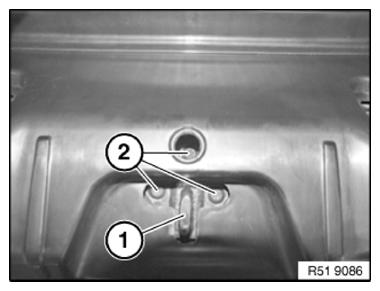

Slacken screws (2) until striker (1) can still just be moved and centers itself.

IMPORTANT: Striker (1) must not brush against tailgate lock.

Fig 3: Identifying Striker And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Close rear lid.

Check gap dimensions and locking comfort. See 41 00... BODY GAP DIMENSIONS .

If necessary, repeat procedure.

NOTE: When the tailgate is closed, the striker must not touch or scrape against the tailgate lock. Look out for scratch marks.

Open tailgate.

Tighten down screws.

Tightening torque 51 24 3AZ .

Fig 4: Identifying Striker And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust bump stops (1) on tailgate.

NOTE: Operation is described in:

Removing and installing/replacing stop pads on tailgate. See 51 23... ADJUSTING/REPLACING BUMP STOPS (APPLY TO RELEVANT VEHICLE TYPE) .

Fig 5: Identifying Bump Stops On Tailgate
Courtesy of BMW OF NORTH AMERICA, INC.

Version with reversing camera:

After adjusting, check rear view camera and if necessary RECALIBRATE .
