Installing the safety pressure switch

• Tighten safety pressure switch (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Safety pressure switch
  	Tightening torque	10 Nm

• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

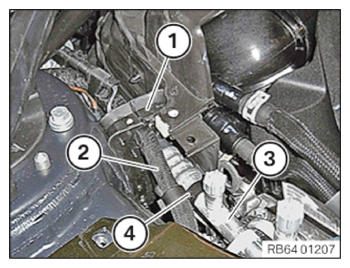

• Position refrigerant line (3) correctly in holder (1).
• Position cable (2) correctly in holder (1).
• Hook refrigerant line (3) into holder (4).
• Close the holder (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

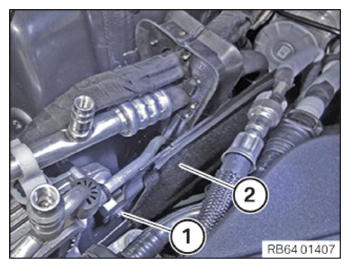

• Position cowl lower part (2) correctly.
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Firewall lower part on body
  Nut	tightening torque	2.6 Nm
  Screw	tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace O-rings.

  Parts:  O-rings

• Correctly position the refrigerant line (2).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Refrigerant line to connecting piece
  M6 screw	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock holder (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the cover (3).
• Fasten expanding rivet (1).
• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Cowl cover, top
  screw	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING RIGHT HEADLIGHT .
• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to INSTALLING TEMPERATURE SENSOR .
• Refer to PARTIALLY INSTALLING FRONT LEFT AND RIGHT WHEEL ARCH COVER .
• Refer to PARTIALLY INSTALLING THE WHEEL ARCH TRIM ON THE FRONT LEFT AND RIGHT .
• Refer to INSTALLING THE FRONT CENTER HOOD SEAL .
• Refer to INSTALLING HOOD SEAL ON LEFT AND RIGHT SIDES .
• Refer to INSTALLING THE REAR COWL PANEL .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING FRONT WINDSHIELD PANEL COVER .
• Refer to INSTALLING THE GUTTER STRIP ON THE WINDSCREEN ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to EVACUATING AND CHARGING CONDITIONING .
• Refer to ADJUSTING HEADLIGHTS .
