Adjusting headlights
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Notes on the headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: TEST REQUIREMENTS FOR HEADLIGHTS VERTICAL AIM ADJUSTMENT .
Notes on the headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: TEST REQUIREMENTS FOR HEADLIGHTS VERTICAL AIM ADJUSTMENT .

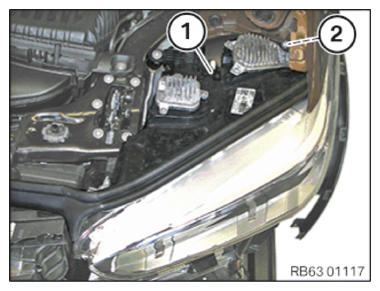

- Perform the headlight adjustment with the adjusting screws (1)
and (2)
.
A definite allocation of adjusting screws is not possible.
Adjusting screw (1) is primarily used for the height adjustment.
Adjusting screw (2) is primarily used for the lateral adjustment.
- Adjust the height at the adjusting screw (1) .
- US version:
Set the lateral adjustment only if the plug on the adjusting screw for lateral adjustment is missing or damaged.
If required, remove damaged plug.
- Make the lateral adjustment at the adjusting screw (2) .
- Perform reference run. Switch the headlights off and on again.
- Check the headlight and adjust if necessary.
- US version:
If the lateral adjustment has been checked or corrected: Replace the plug and press it into the adjusting screw without damage
for lateral adjustment.
