Installing air conditioning compressor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

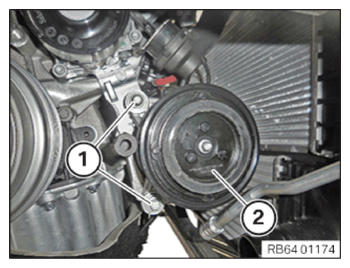

- Feed in the air conditioning compressor (2) and position it.
- Position the bolt (1)
.

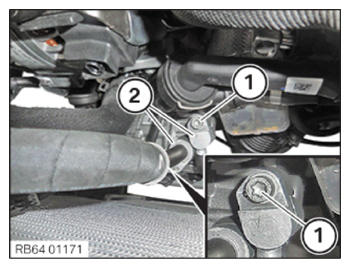

- Connect connector (1)
at top on the air conditioning compressor (2)
and lock.

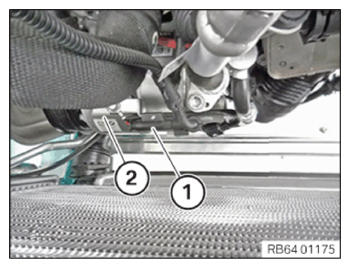

- Position refrigerant lines (2) at top on air conditioning compressor.
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS

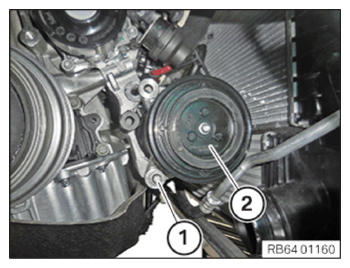

Refrigerant line on air conditioning compressor M8 tightening torque 19 Nm - Position air conditioning compressor (2) correctly and tighten screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Air conditioning compressor in component carrier M10 Tightening torque 38 Nm
Follow-up work
- Refer to INSTALLING THE DRIVE BELT FOR THE ALTERNATOR .
- Refer to INSTALLING THE FRONT RIGHT WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT RIGHT WHEEL .
- Refer to INSTALLING FAN COWL WITH ELECTRIC FAN .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
- Refer to EVACUATING AND CHARGING CONDITIONING .
- Refer to RUNNING IN THE NEW AIR CONDITIONING COMPRESSOR .
