Replacing right radial shaft seal on differential (AISIN F22AW) (X2 sDrive 28i 2018-2023)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 23 0 490
- 2 410 609
- 2 405 250
Necessary preliminary work:
- Refer to REMOVING RIGHT OUTPUT SHAFT .
- Refer to REMOVING INTAKE SILENCER HOUSING .
Removal:

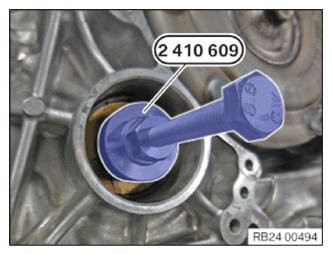

Screw special tool 2 410 609 into radial shaft seal.
Turn the screw on the special tool until the radial shaft seal is pulled out.
Installation:
Installation note:
Coat sealing lips of new radial shaft seal with clean transmission oil.
Drive shaft seal firmly home with special tool 2 405 250.
Required follow-up work:
- Refer to INSTALLING RIGHT OUTPUT SHAFT .
- Refer to CHECKING TRANSMISSION OIL LEVEL .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
