Installing Lambda oxygen sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: OVERVIEW OF CONSUMABLES .
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: OVERVIEW OF CONSUMABLES .
NOTE:
TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES .
For additional information see: OVERVIEW OF CONSUMABLES .
- Prepare the oxygen sensor.
The sensor ceramics must not be damaged.
- Thread
- Sensor ceramics
NOTE: The cable of the Lambda oxygen sensor is black. The installation location of the Lambda oxygen sensor is in front of the catalytic converter. - Insert and install the Lambda oxygen sensor (1).
- Tighten the Lambda oxygen sensor (1) with the special tool 0 491 074 (11 7 020)
.TIGHTENING TORQUE SPECIFICATIONS
Lambda oxygen sensor on catalytic converter M18x1.5 Tightening torque 50 Nm - Guide in and install cover (1).
- Feed in and install the thermal protection (2) in the arrow direction.
- Replace the cable ties (1).
Parts: Cable tie

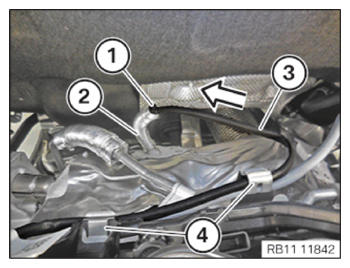

- Secure cable tie (1).
- Feed the cable (3) into the clamps (4) and install it.

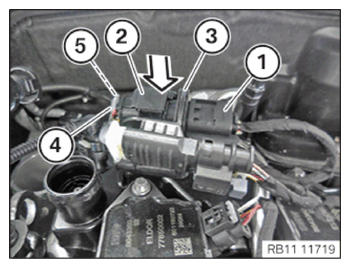

- Feed in the connector (2) on the holder (3) in the arrow direction and install it.
- Feed the cable (5) into the clamps (4) and install it.
- Connect and lock the connector (1).
The connector (1) must engage audibly.
Follow-up work
- Refer to PREPARING FOR THE INSTALLATION OF THE CLEAN AIR PIPE .
- Refer to INSTALLING CLEAN AIR PIPE .
- Refer to INSTALLING THE REAR BULKHEAD .
- Refer to INSTALLING THE UPPER FIREWALL COVER PANEL .
- Refer to INSTALLING FRONT WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
