33 31 025 Removing and installing/replacing vibration absorber on side member
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove rear WHEEL ARCH SPLASH GUARD

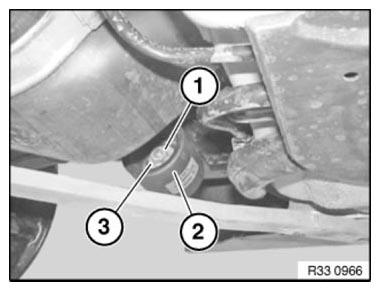

Release nut (1) and remove vibration absorber (2) from holder.
Tightening torque, see 33 32 9AZ in 33 32 CONTROL ARMS AND STRUTS .
Installation:
Pay attention to lock washer (3) between collar nut and vibration absorber.
Replace screw and nut.
IMPORTANT:

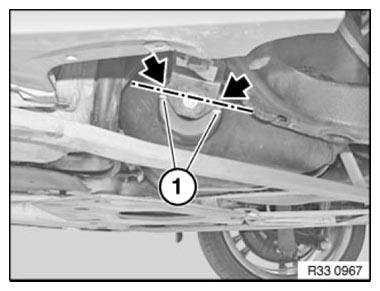

- Groove (1) on the vibration absorber must be aligned horizontally to the holder corners!
