51 71... Removing and installing/replacing rear left or right wheel arch splash guard

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Release screw and nut (1).

Fig 1: Identifying Wheel Arch Splash Guard Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable holder (1).

Remove splash guard (2).

Fig 2: Identifying Cable Holder And Splash Guard

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

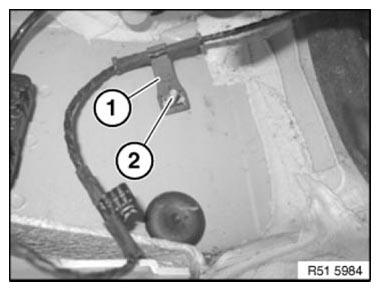

Engage lug for cable (1) on stud (2).

Fig 3: Identifying Cable On Stud

Courtesy of BMW OF NORTH AMERICA, INC.
