63 12 140 Removing and installing (replacing) left headlight - LED technology - (X6 2015-2019)

Necessary preliminary work:

• Remove FRONT BUMPER PANEL .

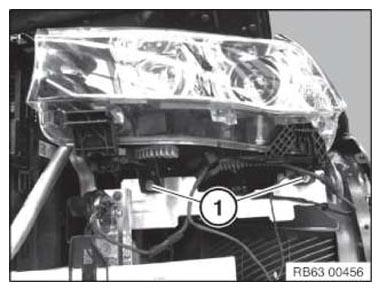

Slacken both screws (1).

Tightening torque 63 12 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

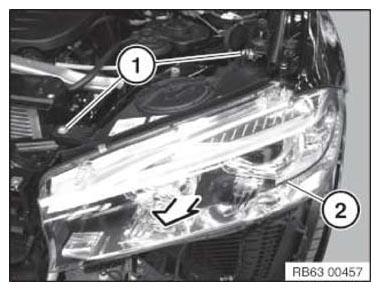

Slacken both screws (1).

Tightening torque 63 12 1AZ .

Unlock and disconnect relevant connectors.

Remove headlight (2) forwards.

Installation note:

US version:  Checking BLOCKING AT HORIZONTAL POSITION .

Observe BODY DIMENSIONS . .

Adjust HEADLIGHTS .

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• REMOUNT HEADLIGHT DRIVER MODULE (LED) .
• REMOUNT LED MAIN LIGHT MODULE .
• REMOUNT CORNERING LIGHT LED MODULE .
• REMOUNT TURN INDICATOR INSERT .
