63 11 570 Removing and installing/replacing left headlight driver module (LED headlight) (X6 2015-2019)
IMPORTANT:
Read and comply with INFORMATION ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE
!
Necessary preliminary tasks:
- Partially loosen FRONT WHEEL ARCH PANEL (front section).

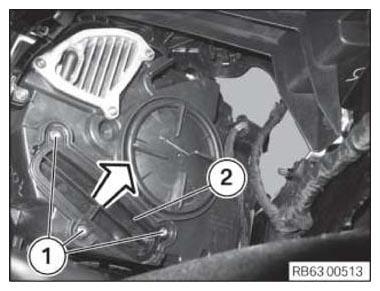

Release screws (1).
Tightening torque 63 11 2AZ .
Pull headlight driver module (2) out of headlight.
Installation note:
Gasket (1) must not be damaged and must be installed free from grease.
Guides (2) must not be damaged or missing.
Replacement:
Teach in headlight driver module (1) via vehicle diagnosis.
- Service functions
- Body
- Lights
- Initialize the headlight driver module and teach in LEDs in headlight
- If necessary, perform encoding
