63 11 800 Replacing LED main light module on the left (LHML) (X6 2015-2019)

Necessary preliminary tasks:

• Remove HEADLIGHT .

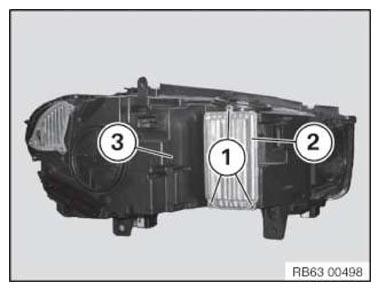

Release screws (1).

Pull LED main light module (2) out of headlight (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Gasket (1) for LED main light module (2) must not be damaged.

Gasket (1) for LED main light module (2) must be installed free of grease.

Make sure LED main light module (2) is installed correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
