63 13 080 Removing and installing/replacing left turn indicator insert (X6 2015-2019)

Necessary preliminary tasks:

• Partially detach the FRONT WHEEL ARCH COVER (front section)

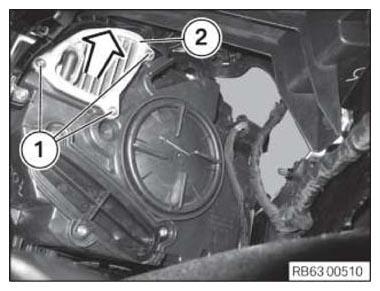

Release screws (1).

Pull the turn indicator insert (2) out of headlight.

Courtesy of BMW OF NORTH AMERICA, INC.

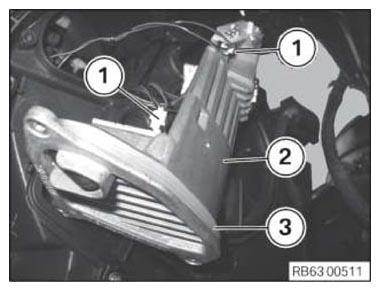

Unlock the connector (1) on the turn indicator insert (2) and disconnect.

Installation note:

The seal (3) must not be damaged or missing.

Ensure gasket (3) is fitted correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Teach in turn indicator insert with vehicle diagnosis.

• Service functions
• Body
• Lights
• Initialize the headlight driver module and teach in LEDs in headlight
