61 34... Removing and installing/replacing 12-V power socket

Special tools required:

Necessary preliminary tasks:

Check the equipment dependent sockets that are available.

Cup holder:

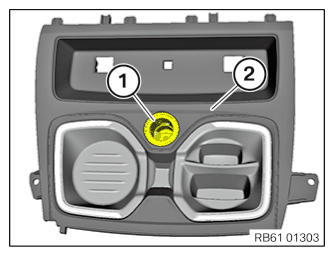

Unclip connector (1) and feed through under center console to power socket (2).

Remove power socket (2) using special tool 61 0 250 . (See last operation.)

Fig 1: Center Console Power Socket And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Rear center console trim:

Remove socket (1) from the center console trim using special tool 61 0 250 2. (See last operation.)

Fig 2: Center Console Trim Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment:

Put your hand behind the right luggage compartment wheel arch panel.

Detach connector (1) from power socket (2).

Fig 3: Power Socket And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment:

Fold up the protective cap over power socket (1).

Fig 4: Power Socket Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment:

Remove socket (1) using special tool 61 0 250 . (See last operation.)

Fig 5: Power Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out 12-V power socket from housing with special tool 61 0 250 until connector is at bottom of light ring.

Fig 6: Pulling Power Socket Using Special Tool (61 0 250)

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out power socket (1) in direction of arrow with a suitable tool.

Fig 7: Removing Power Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Release latch mechanisms (1) with a suitable tool.

Press power socket mounting (2) in direction of arrow out of power socket frame (3).

Installation note:

Latch mechanisms (1) at socket mounting (2) must not be damaged. Make sure socket mounting (2) is fitted correctly in socket frame (3).

Fig 8: Pressing Power Socket

Courtesy of BMW OF NORTH AMERICA, INC.
