51 37 000 Removing and installing/replacing complete rear left or right power window regulator

WARNING: Danger of injury!
Power windows unit has no anti-trapping mechanism.

Necessary preliminary tasks:

Removal:

Release screw (1).

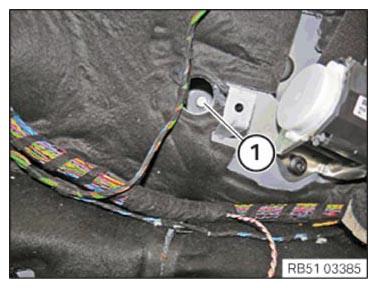

Fig 1: Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Run side window up to the top.

Feed out the power window with retaining bracket (2) upwards.

Release the cable holder and disconnect the plug connector.

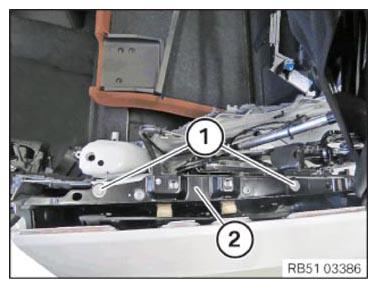

Fig 2: Power Window Retaining Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement:

Mount cable holder and connect plug connector.

Feed in the power window with retaining bracket (2) downwards.

Position screws (1).

Fig 3: Power Window Retaining Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Side window glass (3) must be distance (A and B) away from body (2).

Dimension A = 13 to 15 mm.

Dimension B = 14 to 16 mm.

Adjust distance (A, B) and tighten screws (1).

Tightening torque: 51 37 4AZ .

Fig 4: Side Window Glass Distance

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Tightening torque: 51 37 3AZ .

Fig 5: Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
