51 37 154 Adjusting rear left or right side window

Special tools required:

Configuring the correct setting will fulfil the following properties:

Seal against water ingress
No wind noise
No rattling
No unintentional reversing of the fixed side window glass during closing action (anti-trap mechanism)

Prerequisites for correct adjustment:

Vehicle is supported on wheels at ground level
DOOR WINDOW GLASS correctly adjusted
Recharge BATTERY (read and comply with notes on lithium ion battery)
(Full operability of the power windows during the adjustment procedure is only assured with an external power supply)

Observe the checking and adjustment sequence!

Side window preload
Side window retraction depth/longitudinal direction

Adjusting procedures are performed with hardtop open.

Necessary preliminary tasks:

Remove REAR WEATHER STRIP.
Open retractable hardtop.
Move fixed side window glass upwards (close).

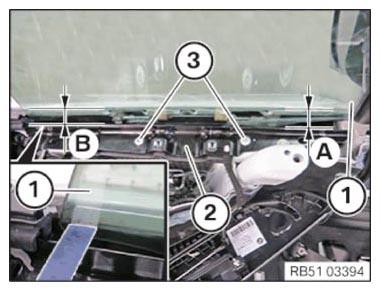

Ideal setting, transverse direction:

Fixed side window glass (1) must be at the correct distance (A and B) from the connecting bracket (2).

Dimension A = 15 ± 1.0 mm.

Dimension B = 15 ± 1.0 mm.

Adjusting transverse direction:

Remove SIDE TRIM PANEL UPPER PART .

Loosen screws (3) and adjust distance (A and B).

Tighten down screws (3).

Fig 1: Fixing Side Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

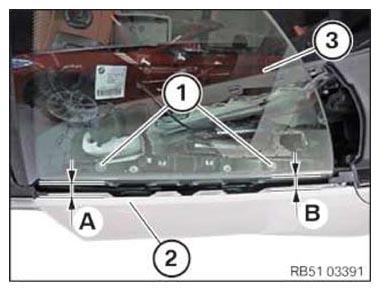

Ideal setting, transverse direction:

Side window glass (3) must be distance (A and B) away from body (2).

Dimension A = 13 to 15 mm

Dimension B = 14 to 16 mm

Adjusting transverse direction:

Loosen screws (1) and adjust distance (A and B).

Tighten down screws (1).

Tightening torque: 51 37 4AZ .

Fig 2: Side Window Glass Distance

Courtesy of BMW OF NORTH AMERICA, INC.

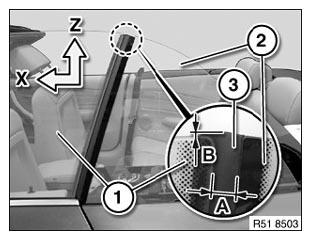

Ideal adjustment, longitudinal direction:

Side window glass (2) must be positioned with dimensions (A) to door window glass (1).

Measurement (A) = 12, 7 mm

Parallelism deviation ± 1 mm.

Door window glass (1) must be a short length (B) to the gasket (3).

Measurement (B) = 1, 3 mm

Fixed side window glass (2) must demonstrate a parallel gap to the door window glass (1).

Fig 3: Adjusting Side Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting longitudinal direction:

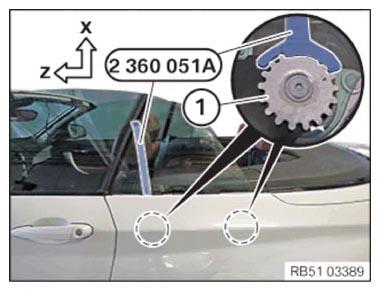

Loosen multipoint head cap screw (1) with special tool 2 360 051 A.

Adjust X and Z direction by moving the fixed side window glass (2).

Fig 4: Loosening Head Cap Screw With Special Tool (2 360 051 A)

Courtesy of BMW OF NORTH AMERICA, INC.

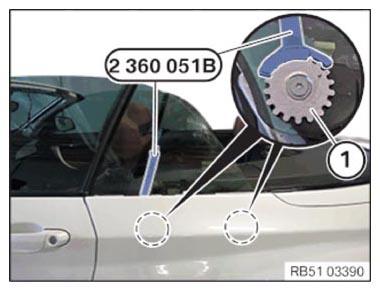

Tighten multipoint head cap screw (1) with special tool 2 360 051 B.

Tightening torque: 51 37 2AZ .

Fig 5: Tightening Head Cap Screw With Special Tool (2 360 051 B)

Courtesy of BMW OF NORTH AMERICA, INC.

Ideal setting, preload:

NOTE: Pre-tension can be checked with or without weather strip. Pretension is 1.0 mm greater with weather strip. Magnet in special tool 51 0 341 creates the correct door window glass pre-tension on the seal system for measurement. No force must be exerted on the door or door window glass during measurement.

Insert special tool 51 0 341 in rotary striker of door lock and close rotary striker manually. Carefully close door.

Fig 6: Inserting Special Tool (51 0 341) Of Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

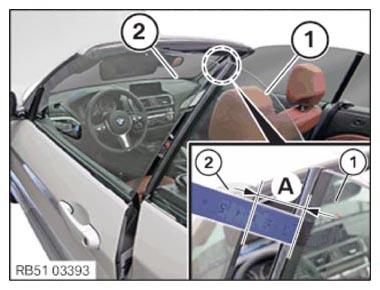

Measure distance (A) between side window glass (1) and inner edge of door window glass (2).

NOTE: Measuring point 10 mm below the window edge.

With weather strip fitted (front and rear):

A = 28 ± 1 mm

Without weather strip fitted (rear):

A = 27 ± 1 mm

Fig 7: Measuring Distance Between Side Window Glass And Inner Edge Of Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust preload:

Remove REAR WEATHER STRIP.

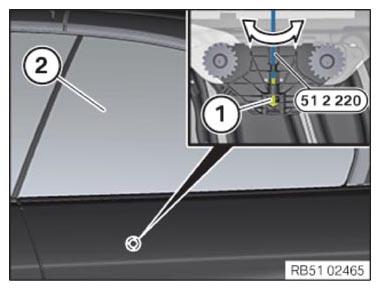

Turn adjusting screw (1) 51 2 220 with special tool until correct pretension is reached.

NOTE: With soft top closed, side window (2) must run correctly into soft top seals (check only when weather strip mounted).

Fig 8: Turning Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Checking adjustment:

Open door window and side window.

Install REAR WEATHER STRIP.

Close both windows simultaneously and check run-in of side window glass to door window glass.

Close soft top.

Soft top seals must not be damaged.

Check run-in of both window glasses in soft top seals.
