51 16 172 Removing and installing/replacing center armrest storage compartment

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR CENTER CONSOLE TRIM
Remove CENTER CONSOLE COVER

Release screw (4).

Feed out storage compartment (2), unlocking retaining hooks (3) by pressing the open button if necessary.

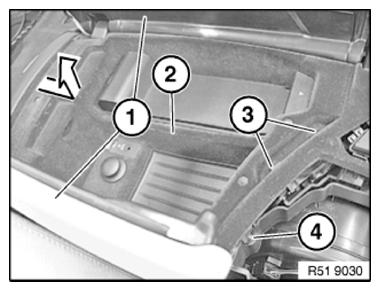

Fig 1: Removing Center Armrest Storage Compartment

G09925880

Courtesy of BMW OF NORTH AMERICA, INC.

Release plug connections on inside of center console (1) and disconnect.

Installation note:

Make sure cables are correctly routed.

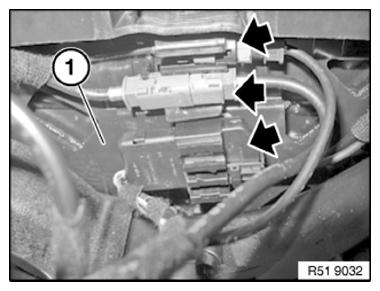

Fig 2: Locating Center Console Plug Connection

G09925881

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections underneath storage compartment (1) and disconnect.

Installation note:

Make sure cables are correctly routed.

Remove storage compartment (1).

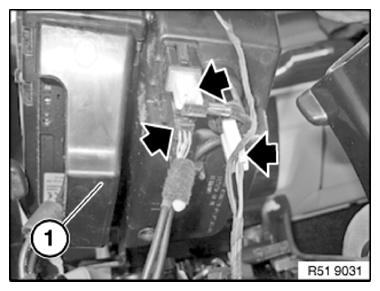

Fig 3: Locating Storage Compartment Plug Connection

G09925882

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove LED FOR CENTER ARMREST STORAGE COMPARTMENT
Remove USB/AUDIO INTERFACE CONNECTING SOCKET
Remove EJECT BOX
