63 31 176 Removing and installing/replacing LED for center armrest storage compartment
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:

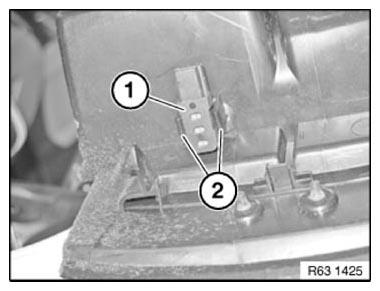

Unlock LED (1) at latch mechanism (2) and remove from center armrest storage compartment.
Installation note:
Make sure LED (1) is correctly seated.
