51 16 163 Removing and installing/replacing rear center console cover

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Open storage compartment lid (1).

Starting at the top, unclip the cover of the center console (2) toward the rear.

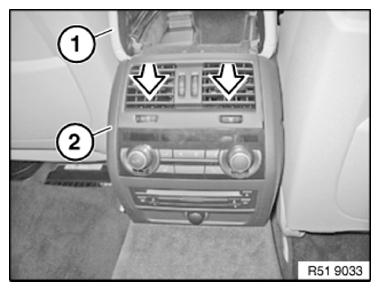

Fig 1: Opening Storage Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure clamps are seated correctly in associated guides of center console.

Replace defective clamps on center console cover (1).

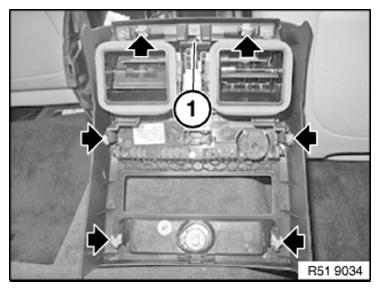

Fig 2: Locating Center Console Cover Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections on center console cover (1) and disconnect.

NOTE: Number of plug connections can vary depending on the equipment specification.

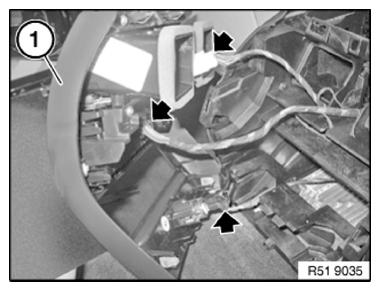

Fig 3: Locating Center Console Cover Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Modify fresh air grille in rear passenger compartment . See 64 22 190 REMOVING AND INSTALLING/RENEWING REAR COMPARTMENT FRESH-AIR GRILLE (BASIC A/C SYSTEM) or 64 22 191 REMOVING AND INSTALLING/REPLACING REAR CABIN FRESH-AIR GRILLE (HIGH A/C SYSTEM)
Modify 12 V socket
