51 16 160 Removing and installing center console cover

Special tools required:

• 00 9 325

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Version with manual gearbox:

• DISCONNECT NEGATIVE BATTERY CABLE (to avoid fault memory entries)

For comparison:

Graphic shows center console trim for manual version.

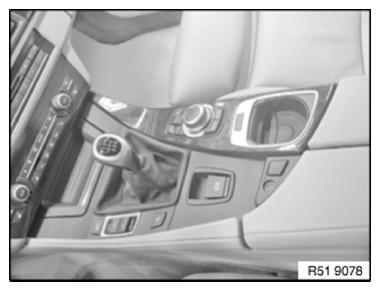

Fig 1: Identifying Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Manual transmission version only:

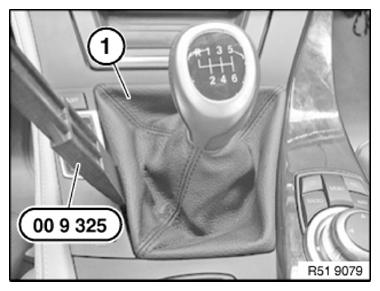

Pry gearshift lever cover (1) off of selector lever using special tool 00 9 325 .

Fig 2: Prying Gearshift Lever Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Open both center console armrests.

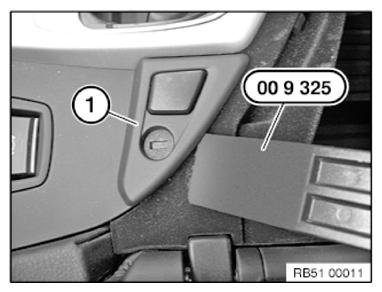

Lever out rear cover (1) with special tool 00 9 325 .

Fig 3: Opening Center Console Armrests

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (see arrows) on cover closure (1) may not be damaged.

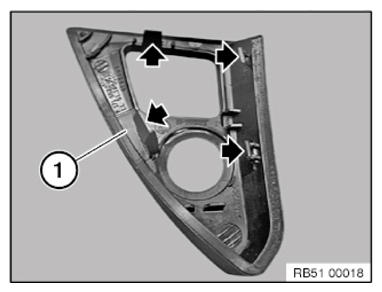

Fig 4: Locating Center Console Armrests Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

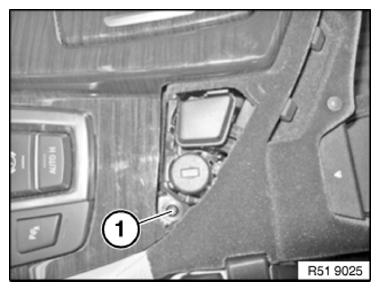

Fig 5: Identifying Center Console Screws

Courtesy of BMW OF NORTH AMERICA, INC.

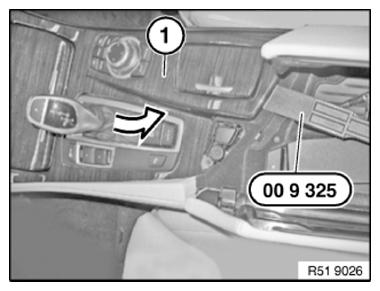

Carefully pry out center console trim (1) with special tool 00 9 325 , while clamping it off and then removing in the direction indicated by the arrow.

Unlock and disconnect underlying plug connections.

Manual transmission version only:

Carefully feed out gearshift lever cover through the center console trim opening (1).

Remove center console trim (1).

Fig 6: Prying Out Center Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace defective retainers (1).

Guide (2) must not be damaged.

Make sure center console trim is seated correctly.

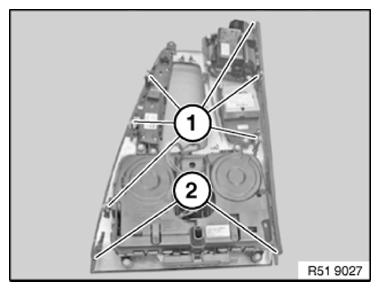

Fig 7: Identifying Center Console Guide And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
