51 21 125 Removing and installing/replacing support for left or right outer door handle with lock barrel

Necessary preliminary tasks:

• Remove OUTER DOOR HANDLE
• Remove DOOR LOCK Not F1213:
• Remove TRIM ON WINDOW FRAME OF FRONT DOOR

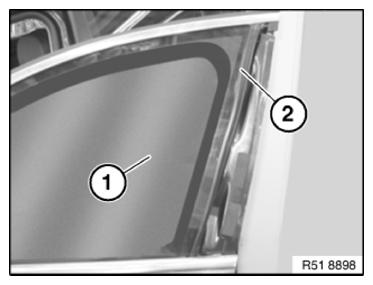

Close side window (1), if necessary.

Not F1213:

• Do not pinch or trap the rubber window seal (2).
  Fig 1: Identifying Rubber Window Seal

  Courtesy of BMW OF NORTH AMERICA, INC.

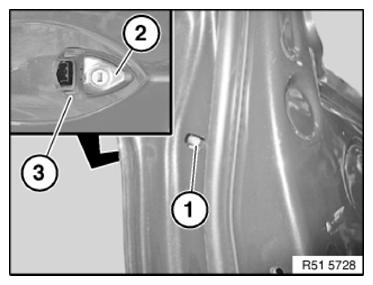

Release screw (1) on cap (2).

Remove cap (2).

Installation note:

Rubber seal (3) must sit correctly in guides on door outer skin.

Fig 2: Identifying Door Handle Cap And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

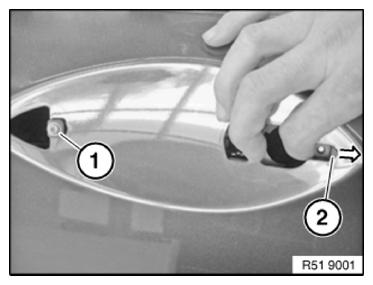

Release retaining screw (1).

Remove plastic guide underneath.

Installation note:

Correctly insert retaining lug (2) and move to stop.

Fig 3: Releasing Door Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

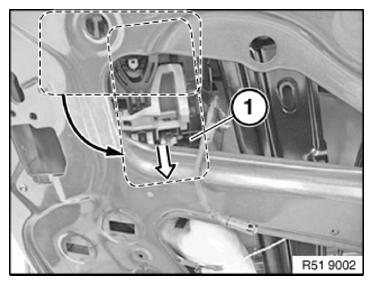

Turn carrier for door outside handle (1) approx. 90° and feed out below.

Installation note:

Ensure correct Bowden cable installation position.

Fig 4: Installing Door Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

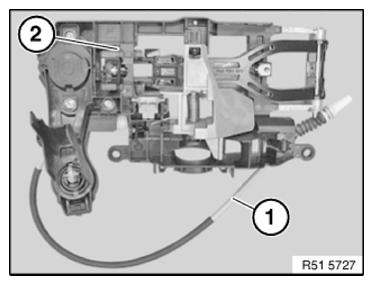

Feed Bowden cable (1) out of carrier (2).

If required, modify LOCK BARREL .

Fig 5: Identifying Door Bowden Cable And Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
