51 21 140 Removing and installing/replacing complete lock barrel in left or right front door

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CARRIER FOR OUTER DOOR HANDLE

Release screws (1).

Remove gearing cover (2).

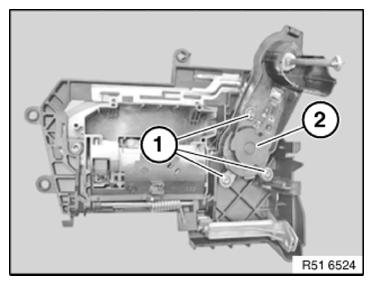

Fig 1: Identifying Gear Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Press down latch mechanism (1) slightly.

Turn lock cylinder (2) in direction of latch mechanism (1) and remove.

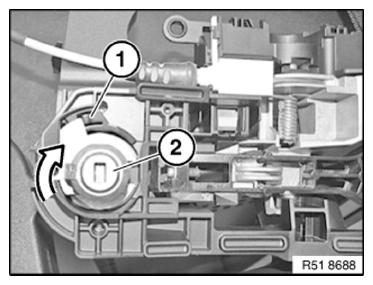

Fig 2: Turning Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
