51 21 170 Removing and installing or replacing outer door handle from left or right front door

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Graphics used come from the F01.

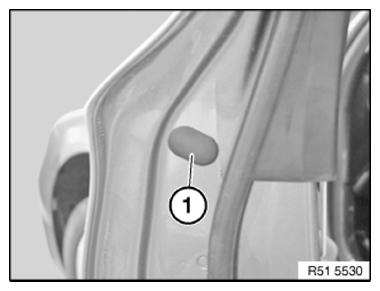

Lever out seal plugs (1).

Fig 1: Identifying Front Door Seal Plug

Courtesy of BMW OF NORTH AMERICA, INC.

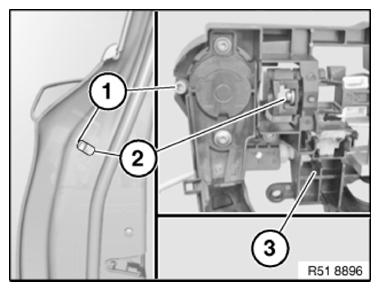

Release clamping bolt (2) from the support for the outer door handle (3).

Fig 2: Identifying Outer Door Handle Clamping Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

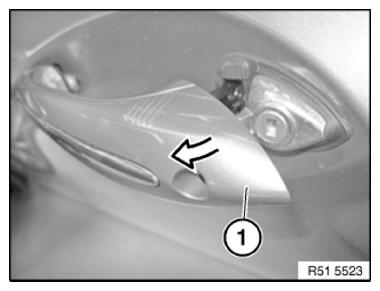

Feed out the rear outer door handle (1) in direction of arrow.

Swivel the outer door handle (1) further in direction of arrow and feed it out at front.

Fig 3: Removing Outer Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

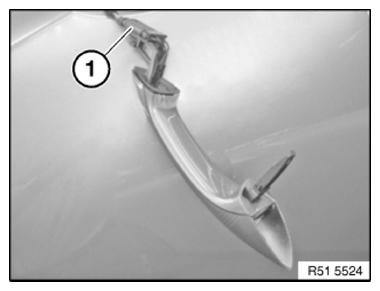

Unlock plug connections (1) and disconnect.

Fig 4: Identifying Door Handle Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
