51 47 315 Removing and installing/replacing front carpet for passenger compartment
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove both front seats . See 52 14 001 REMOVING AND INSTALLING FRONT SEAT, DRIVER'S SIDE or 52 14 002 REMOVING AND INSTALLING FRONT SEAT, FRONT PASSENGER SIDE
- Remove complete accelerator pedal module . See 35 40 001 REMOVING AND INSTALLING OR REPLACING ACCELERATOR PEDAL MODULE
- Remove CENTER CONSOLE .
- Remove trim panel for pedal mechanism . See 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (ECE ONLY) or 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (US ONLY)
- Remove . See 51 45 195 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER RIGHT INSTRUMENT PANEL (ECE ONLY) or 51 45 195 REMOVING AND INSTALLING/REPLACING BOTTOM RIGHT INSTRUMENT PANEL TRIM (US VERSION ONLY) lower trim from instrument panel
- Remove cover for central bass speaker . See 65 12 053 REMOVING AND INSTALLING/RENEWING CENTRAL BASS SPEAKER - PASSENGER'S SIDE - (UNDER FRONT SEAT) or 65 12 051 REMOVING AND INSTALLING/RENEWING CENTRAL BASS SPEAKER - DRIVER'S SIDE- (UNDER FRONT SEAT) left/right
- Remove front left/right footwell side trim panel . See 51 43 075 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, RIGHT or 51 43 070 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, LEFT
IMPORTANT:
Risk of damage!
Pay attention to cables when cutting.
Start cuts towards center of vehicle as far as is possible. This guarantees that cutting edges are covered by storage compartment and/or dashboard.
Pay attention to cables when cutting.
Start cuts towards center of vehicle as far as is possible. This guarantees that cutting edges are covered by storage compartment and/or dashboard.

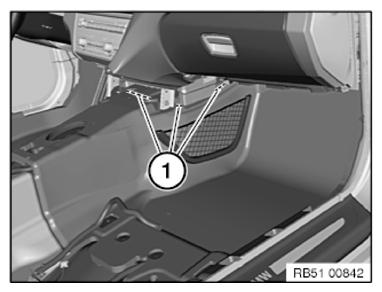

Cut out carpet along lines (1).
Remove carpet to the rear/top and feed out cable.
Installation note:
Apertures (1) serve as fixing points for fitting carpet.
Replacement:
Lay removed carpet over new one and transfer cuts to new carpet.
If necessary, modify STORAGE NET .
