51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove FRONT ENTRANCE COVER STRIP (INSIDE)
Remove trim panel for pedal assembly . See 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (ECE ONLY) or 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (US ONLY)

Release screw (1).

Remove handle from bonnet cable release.

Release screw (2).

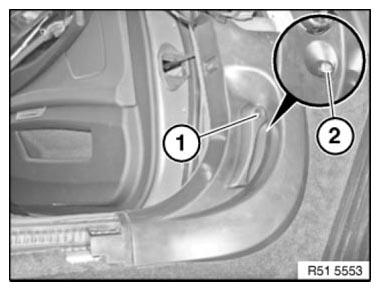

Fig 1: Identifying Bonnet Handle Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lever out A-pillar trim panel (1) using special tool 00 9 317 .

Disconnect plug connection behind.

Installation note:

Neatly fit A-pillar trim (1) into door seal.

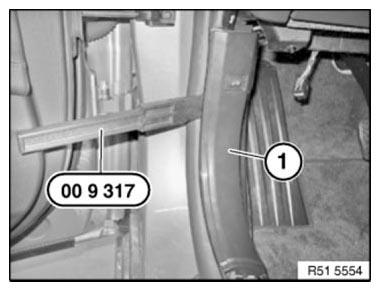

Fig 2: Removing A-Pillar Trim Panel Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure A-pillar trim panel (3) is correctly seated.

If necessary, replace both clips (1) and clamp (2).

Replacement

Modify clips (1)
Modify luggage compartment locking system switch

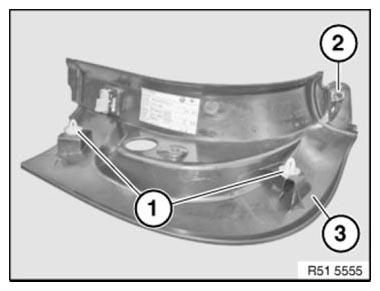

Fig 3: Identifying A-Pillar Trim Panel, Clamp And Clip
Courtesy of BMW OF NORTH AMERICA, INC.
