63 12 010 Removing and installing or replacing left headlight (xenon headlight from 07/13)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon lighting system:
Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.

Necessary preliminary tasks:

Remove FRONT BUMPER PANEL

Vehicles with auxiliary radiator:

Remove FRONT WHEEL ARCH COVER

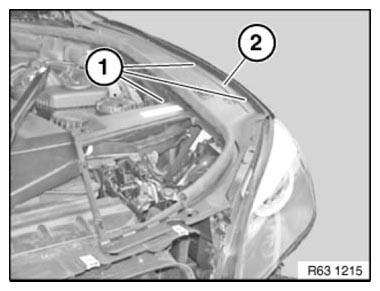

Lever out expanding rivets (1) on engine compartment lid seal (2).

Fig 1: Identifying Expanding Rivets On Engine Compartment Lid Seal

G06886083

Courtesy of BMW OF NORTH AMERICA, INC.

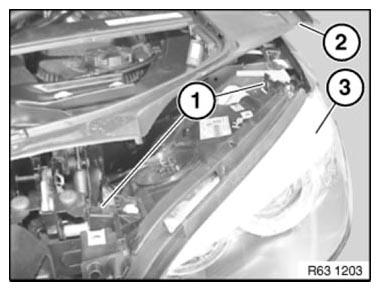

Remove seal for engine compartment lid (2) on left.

Release screws (1) on headlight (3) at top.

Tightening torque 63 12 1AZ .

Fig 2: Identifying Engine Compartment Lid, Headlight, And Screws

G06886084

Courtesy of BMW OF NORTH AMERICA, INC.

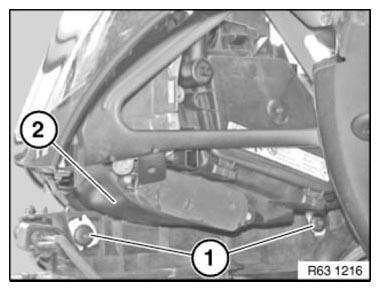

Release screws (1) on headlight (2) at bottom.

Tightening torque 63 12 1AZ .

Fig 3: Identifying Bottom Headlight Screws

G06886085

Courtesy of BMW OF NORTH AMERICA, INC.

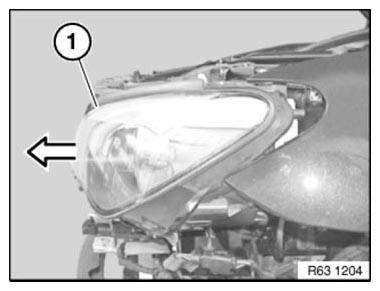

Pull out headlight (1) in direction of arrow slightly.

Fig 4: Pulling Out Headlight

G06886086

Courtesy of BMW OF NORTH AMERICA, INC.

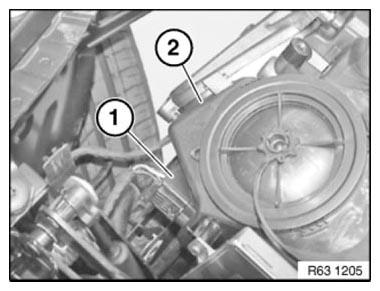

Disconnect plug connection (1) on headlight (2) and remove headlight.

Fig 5: Identifying Plug Connection On Headlight

G06886087

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement

Note BULB TYPE .

Replacement only

Remount IGNITION UNIT FOR XENON HEADLIGHT
Remount CONTROL UNIT FOR XENON HEADLIGHTS
Remount HEADLIGHT DRIVER MODULE
Remount DRL MODULE

Installation note:

Adjust HEADLIGHT .
