63 99 145 Replacing bulb for front left side light/daytime driving lights (LED module) (xenon headlight)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Remove LEFT HEADLIGHT

Release screws (1).

Lift out LED module (2).

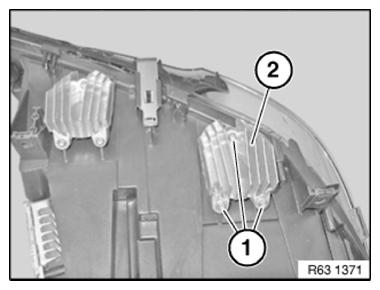

Fig 1: Identifying LED Module With Screws

G09881337

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove LED module (2).

If necessary, remove sealant residue from headlight housing.

Installation note:

Ensure LED module (2) is correctly positioned in headlight housing.

If necessary, replace sealant for LED module (2) (see BMW Electronic Parts Catalogue).

Note BULB TYPE .

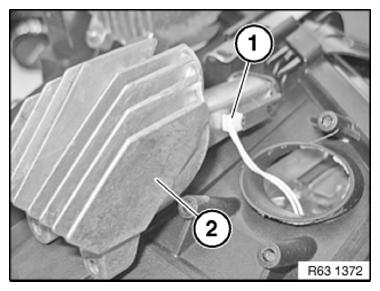

Fig 2: Identifying LED Module With Plug Connection

G09881338

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Always replace LED modules (2) as a pair.

For the LED module (2) to function properly, it is obligatory to use an adapter cable (1).

Attach included adapter cable (1) to LED module (2) and connect to headlight using cable.

Ensure adapter cable (1) is positioned properly, do not trap cable.

As far as possible, do not touch sealant (3) on new LED module (2).

Note BULB TYPE .

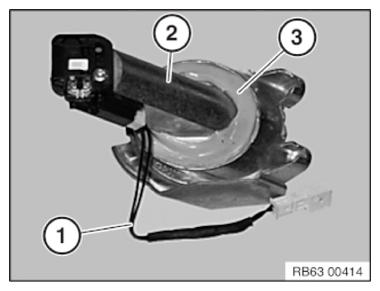

Fig 3: Identifying Adapter Cable, LED Module, And Sealant
