63 12 870 Replacing ignition unit for left xenon headlight (from 07/13)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Follow notes for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Follow notes for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .
Necessary preliminary tasks:
- Remove LEFT HEADLIGHT

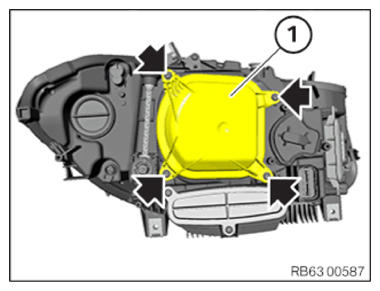

Release screws on protective cap (1) and remove protective cap (1).
IMPORTANT:
Risk of damage due to moisture penetration!
Installation note:
Check seal. Replace protective cap (1) if necessary.
Comply with instructions for REPLACING THE PROTECTIVE CAP .
Installation note:
Check seal. Replace protective cap (1) if necessary.
Comply with instructions for REPLACING THE PROTECTIVE CAP .

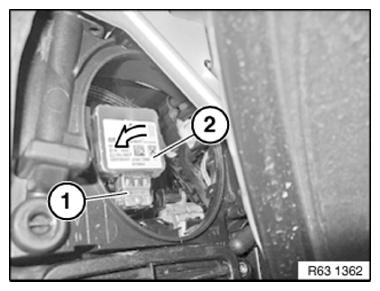

Disconnect plug connection (1) on ignition device with bulb (2).
Remove ignition device with bulb (2) in direction of arrow.
Check HEADLIGHT ADJUSTMENT , correct if necessary.
