22 11 110 Replacing left engine support arm (N55)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work
- Secure engine in INSTALLATION POSITION
- Remove rear UNDERBODY PROTECTION
- Remove left COVER
- Remove rear left CHARGE AIR DUCT

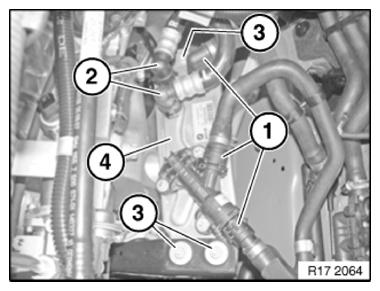

Release screws (3).
Place heat exchanger (4) to one side.
Release screws (1).
Remove engine support arm.
Tightening torque 22 11 3AZ .
