51 75 010 Removing and installing/replacing left or right steering assembly cover
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT UNDERBODY PROTECTION
Slacken all screws/snap fasteners.
Tightening torque 51 75 1AZ .

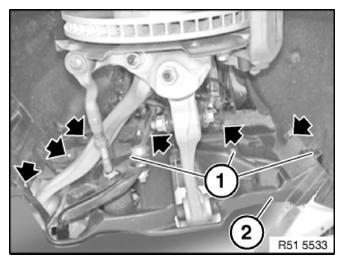

Lever out expanding rivets (1).
Removing steering assembly cover (2).
Installation note:
Replace faulty expanding rivets (1).
Make sure steering assembly cover (2) is correctly seated.
Replacement:
From April 2009 the snap fasteners are discontinued and replaced by a conventional screw connection.
