11 00 670 Securing Engine In Installation Position (N55 RWD)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

00 6 000
00 6 002
00 6 004
00 6 010
00 6 050

WARNING: Danger of Injury!
Observe Following Instructions Relating To Special Tool:

Prior To Each Use, Check The Special Tools for Defects, Modifications and Operational Reliability.
Damaged/Modified Special Tools Must Not Be Used!
No Changes or Modifications May Be Made To The Special Tools!
Keep Special Tools Dry, Clean and Free of Grease.

IMPORTANT: Special Tool Must Not Be Fitted When Cross-Member (1) Is Installed!

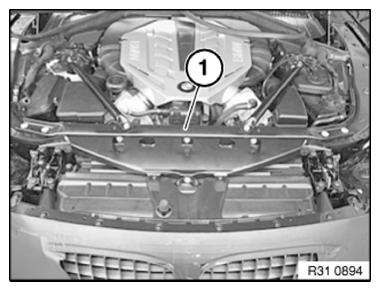

Fig 1: Identifying Cross-Member

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary Preliminary Tasks:

SECURING THE ENGINE COMPARTMENT LID IN THE SERVICE POSITION .
Remove ACOUSTIC COVER .
Remove TRIM PANEL for Engine Compartment Lid At Side.
Remove Underbody Protection At FRONT and REAR .

Assemble Cross-Member 00 6 000 with Special Tools 00 6 002 00 6 004, 00 6 010, 00 6 050.

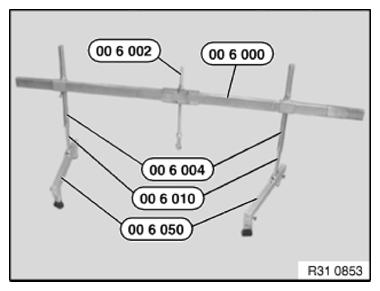

Fig 2: Assembling Cross-Member Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

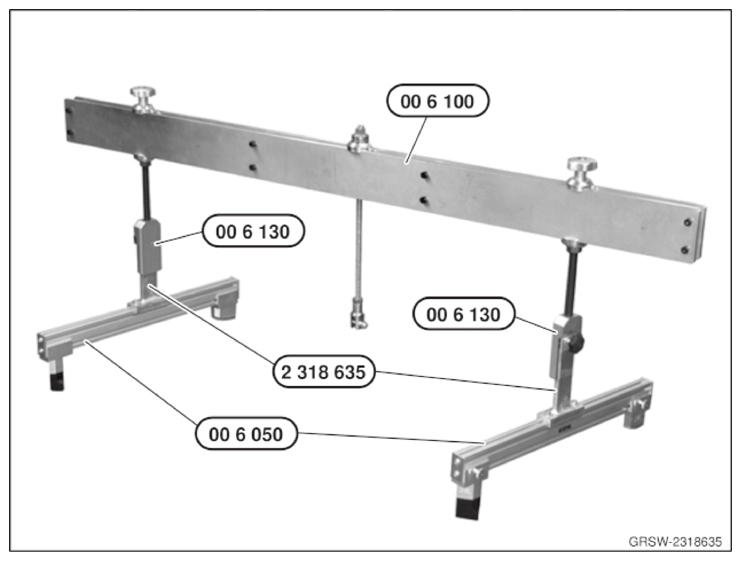

Fig 3: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

New Tool.

Assemble Traverse with Special Tool 00 6 050.

Graphic Shows: N63 Engine

NOTE: Contact Points (1) for Special Tool 00 6 050 Are Pictured.

Position Transverse Member with A 2Nd Person Helping On Contact Points (1).

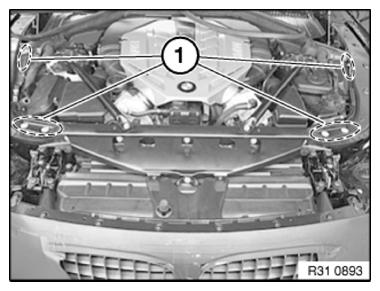

Fig 4: Identifying Contact Points for Special Tool On Transverse Member

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before Lifting The Engine, Check The Lifting Lugs for Damage (Cracks) and To Ensure They Are Seated Securely.

Screw Towing Hook (1) Into Engine Block.

Align Cross-Member So That Spindle Is Correctly Positioned Over Towing Hook.

Secure Chain To The Spindle and Suspend From Towing Hook (1).

WARNING: Danger of Injury!
Tighten Down All Screws and Nuts On Cross-Member 00 6 000.

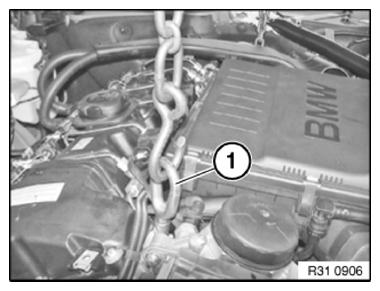

Fig 5: Identifying Towing Hook

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid A Change of Engine Position In The Transverse or Longitudinal Direction.
Always Make Sure There Is Sufficient Clearance Between The Engine (or Its Add-On Parts) and The Body.

Release Bolts (1) On Engine Mount.

Raise Engine Approx. 10 Mm with Cross Member.

IMPORTANT: Observe Installation Note!
To Ensure Play Between Engine Mount and Engine Support Arm, Lower The Engine Completely Before Tightening The Screw Connection (Engine Mount/Engine Support Arm).
Tightening torque 22 11 2AZ .

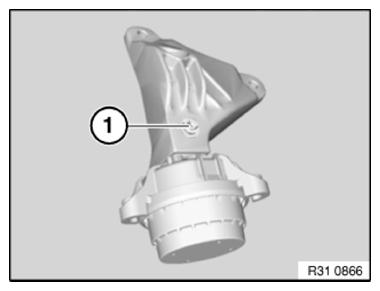

Fig 6: Identifying Right-Hand Engine Mount Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
