51 24 015 Adjusting tailgate catch for tailgate lower section

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Prerequisite:

Tailgate must be correctly adjusted to fit; if necessary, ADJUST TAILGATE .

For ideal setting, refer to 41 00... BODY GAP DIMENSIONS .

Adjust tailgate catch for TAILGATE UPPER SECTION if necessary.

Depending on version, press in or screw in bump stop (1) on tailgate on left and right completely.

NOTE: Operation is described in:

Removing and installing/replacing BUMP STOPS ON TAILGATE .

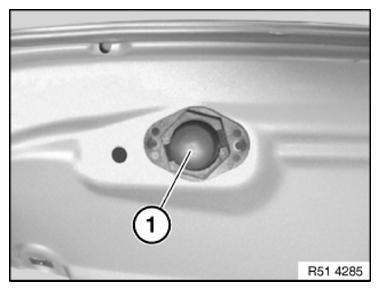

Fig 1: Identifying Bump Stop On Tailgate
Courtesy of BMW OF NORTH AMERICA, INC.

Lever out protective cap (1).

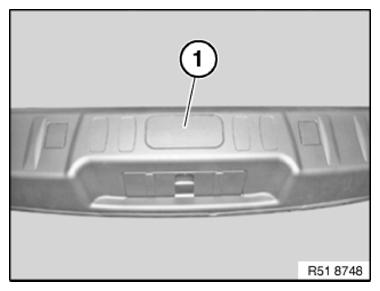

Fig 2: Identifying Protective Cap

G09879277

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nuts (1) until striker (2) can still just be moved and centers itself.

IMPORTANT: Striker (2) must not brush against tailgate lock.

Fig 3: Identifying Slacken Nuts And Striker

G09879278

Courtesy of BMW OF NORTH AMERICA, INC.

Close tailgate.

Check 41 00... BODY GAP DIMENSIONS and locking comfort.

If necessary, repeat procedure.

NOTE: When the tailgate is closed, the striker must not touch or scrape against the tailgate lock. Look out for scratch marks.

Open tailgate.

Tighten down nuts (1).

Tightening torque 51 24 8AZ .

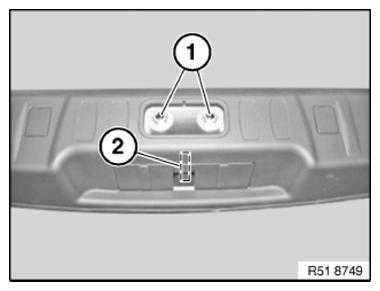

Fig 4: Identifying Nuts And Striker

G09879279

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust bump stops (1) on tailgate.

NOTE: Operation is described in:

Removing and installing/replacing BUMP STOPS ON TAILGATE .

Fig 5: Identifying Bump Stops
Courtesy of BMW OF NORTH AMERICA, INC.

Version with rear view camera:

After adjusting, check rear view camera and if necessary RECALIBRATE .
