51 24 010 Adjusting tailgate catch for tailgate upper section

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Prerequisite:

Rear lid must be correctly adjusted to fit; if necessary, ADJUST REAR LID .

For ideal adjustment, refer to 41 00... BODY GAP DIMENSIONS .

Depending on version, press in or screw in bump stop (1) on tailgate on left and right completely.

NOTE: Operation is described in:

Removing and installing/replacing STOP PAD ON TAILGATE

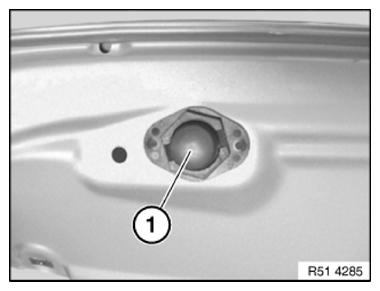

Fig 1: Identifying Bump Stop
Courtesy of BMW OF NORTH AMERICA, INC.

Lever out sealing cap (1).

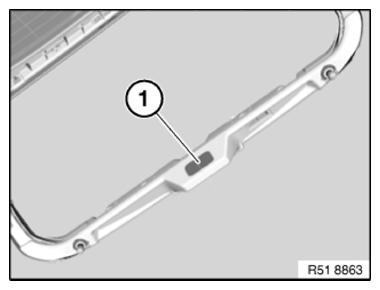

Fig 2: Identifying Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (1) until striker (2) can still just be moved and centers itself.

IMPORTANT: Striker (2) must not brush against rear lid lock.

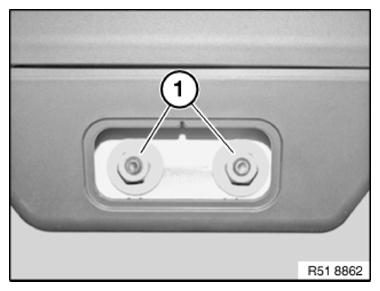

Fig 3: Identifying Slacken Screws And Striker

Courtesy of BMW OF NORTH AMERICA, INC.

Close rear lid.

Check 41 00... BODY GAP DIMENSIONS and locking comfort.

If necessary, repeat procedure.

NOTE: When the tailgate is closed, the striker must not touch or scrape against the tailgate lock. Look out for scratch marks.

Open tailgate.

Tighten down screws (1).

Tightening torque 51 24 8AZ .

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust bump stops (1) on tailgate.

NOTE: Operation is described in:

Removing and installing/replacing STOP PAD ON TAILGATE

Fig 5: Identifying Bump Stops
Courtesy of BMW OF NORTH AMERICA, INC.

Version with reversing camera:

After adjusting, check rear view camera and if necessary RECALIBRATE .
