51 13 402 Removing and installing/replacing handle strip

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

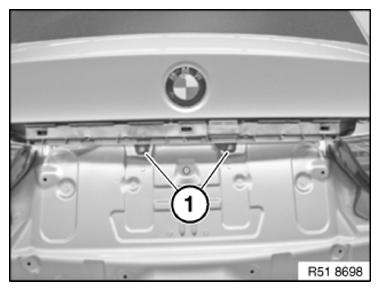

Release screws (1).

Tightening torque 51 13 2AZ .

Fig 1: Identifying Screws

G09879016

Courtesy of BMW OF NORTH AMERICA, INC.

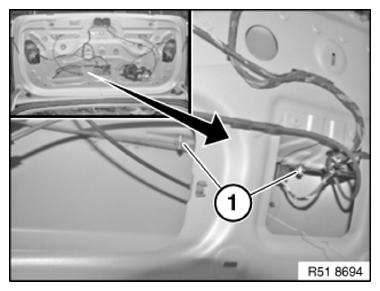

Slacken nut (1).

Tightening torque 51 13 3AZ .

Fig 2: Identifying Slacken Nut

G09879017

Courtesy of BMW OF NORTH AMERICA, INC.

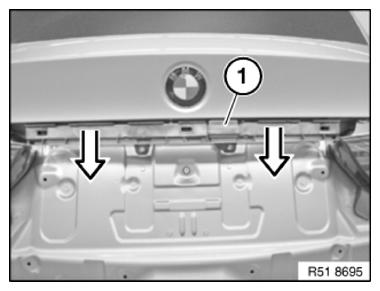

Detach handle strip (1) in direction of arrow from tailgate.

Fig 3: Detaching Handle Strip

G09879018

Courtesy of BMW OF NORTH AMERICA, INC.

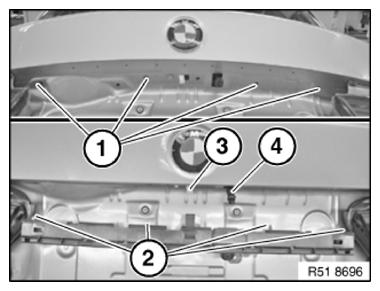

Disconnect plugs (3) and (4).

Check clips (2) for any damages. replacing if necessary.

IMPORTANT: If clip mountings (1) are removed during further operations (e.g. painting), always replace these mounting to ensure watertightness.

Fig 4: Identifying Plugs And Clips

G09879019

Courtesy of BMW OF NORTH AMERICA, INC.
