51 12 156 Removing and installing (replacing) rear bumper panel

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: On vehicles with LANE CHANGE WARNING SENSOR (HC2 sensor):

there must be no mechanical damage (e.g. dents) and no body repair work with filler or painting (several coats) must be carried out in a 10 cm radius about the left or right sensor on the bumper panel
no labels must be attached in the area of the sensor

Refer to appropriate "Body and Paint" service information.

Necessary preliminary tasks:

Remove COVER ON REAR BUMPER PANEL

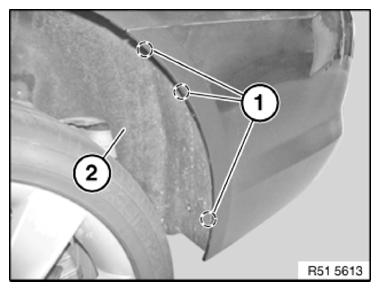

Release screws (1) on wheel arch cover at rear (2).

Tightening torque 51 12 5AZ .

Fig 1: Identifying Screws On Wheel Arch Cover At Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Applicable operation for left and right side:

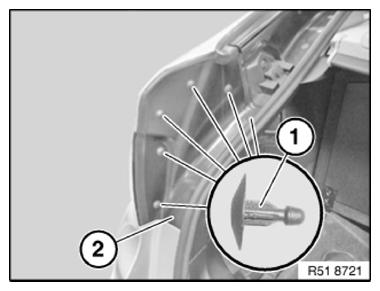

Carefully lever out expanding rivets (1).

Remove bottom water gutter cover (2).

Installation note:

Expanding rivets (1) must not be damaged.

Fig 2: Identifying Expanding Rivets And Water Gutter Cover

Courtesy of BMW OF NORTH AMERICA, INC.

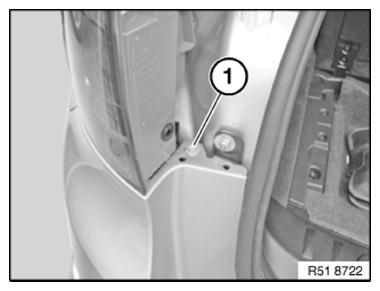

Release left and right screws (1).

Tightening torque 51 12 6AZ .

Fig 3: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

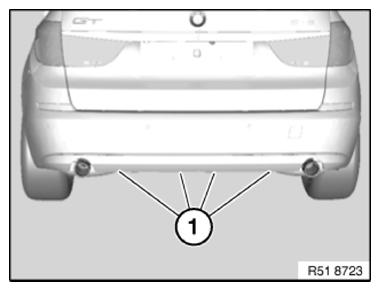

Release bottom screws (1).

Tightening torque 51 12 7AZ .

Fig 4: Identifying Bottom Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Bumper panel (3) is locked on sides and must be unlocked for removal purposes (risk of damage).

Removing

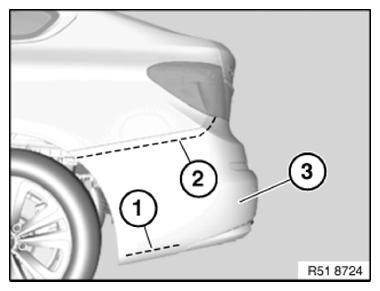

Fig 5: Identifying Bumper Panel Area

Courtesy of BMW OF NORTH AMERICA, INC.

Starting from area (1), carefully disengage individual guide tabs on left and right
Repeat process for area (2)
Pull bumper panel (3) straight backward with aid of a second person
Disconnect plug connections
Set bumper panel (3) aside.

Installation note:

PROTECTIVE FILM FOR PREVENTING PAINT ABRASION in the area of the invisible joint (side frame) must not de damaged or missing.

Guide tabs at top and bottom must not be damaged!

Observe 41 00... BODY GAP DIMENSIONS .

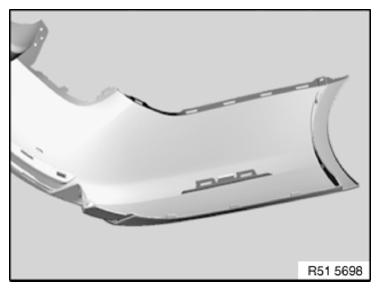

Fig 6: Identifying Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Modify towing eye cover
Fit rear ultrasonic sensors from old component. See REAR MIDDLE RIGHT PDC , REAR MIDDLE LEFT PDC , REAR RIGHT PDC , and REAR LEFT PDC .
Fit REAR REFLECTORS from old component
