51 12 164 Removing and installing/replacing cover on rear bumper panel

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Unclip outer cover (1) beginning towards the rear.

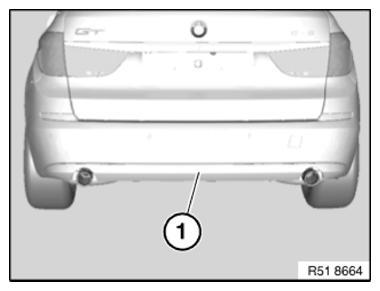

Fig 1: Identifying Outer Cover
G09878990Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

All retaining lugs and guides on cover (1) must not be damaged.

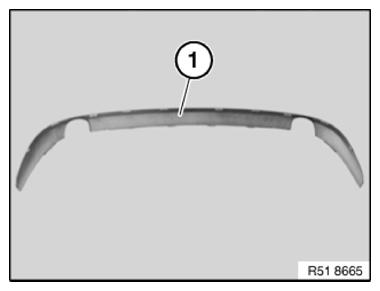

Fig 2: Identifying Retaining Lugs And Guides On Cover
G09878991Courtesy of BMW OF NORTH AMERICA, INC.
