63 14 120 Removing and installing/replacing rear reflector (on rear bumper trim)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Unclip reflector (1) from bumper trim (2) in area (3).

Pull reflector (1) out of guide and detach towards rear from bumper trim (2).

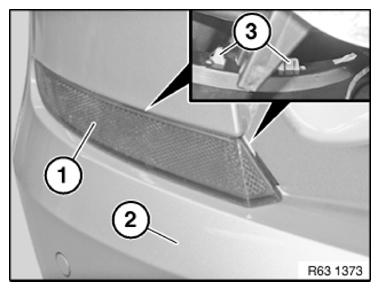

Fig 1: Pulling Reflector Out Of Guide
G09881362Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and guide (2) on rear reflector must not be damaged.

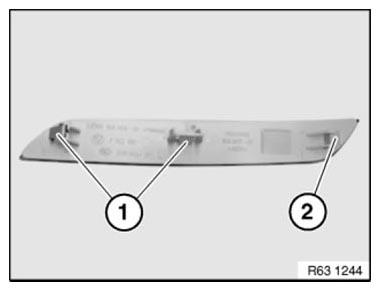

Fig 2: Identifying Catches And Guide On Rear Reflector
G06886105Courtesy of BMW OF NORTH AMERICA, INC.
