51 32 211 Replacing front left or right rubber guide for left or right door window
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR-VIEW MIRROR on front door
- Remove DOOR TRIM PANEL
- Remove SOUND INSULATION in front area

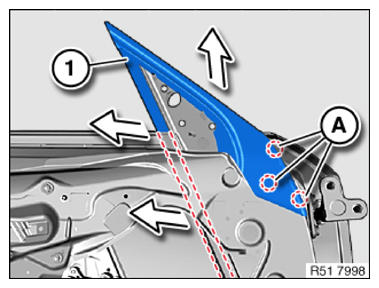

Detach rubber guide (1) in area (A) from door.
Pull rubber guide (1) out of window guide rail and remove towards top.
Installation:
Moisten rubber guide (1) with water before fitting.
Slide rubber guide (1) from above into window guide rail and if necessary retighten at bottom.
Make sure rubber guide (1) is correctly seated on door and door window glass.
Installation:

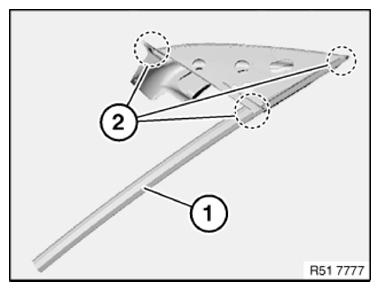

Rubber guide (1) must not be damaged in corners (2).
