51 16 000 Removing and installing or replacing mirror on left or right front door

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

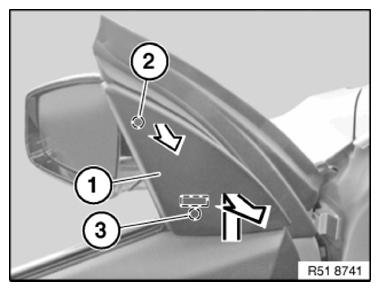

Unclip trim (1) from retaining clip (2) in inward direction.

Slide trim (1) upwards slightly out of guide (3) and remove.

NOTE: On version with speaker, trim (1) can remain hanging over door trim panel.

Installation:

Retaining clip (2) must be fitted on door.

Fig 1: Unclipping Trim From Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

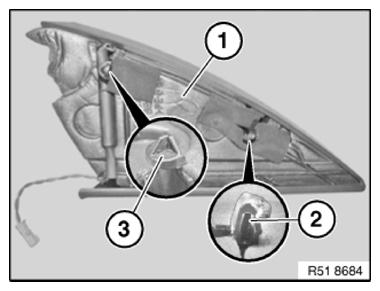

Following parts of trim must not be damaged or missing:

Sound insulation
Retaining clip
Guide

Fig 2: Identifying Retaining Clip And Guide
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Secure mirror against falling down.

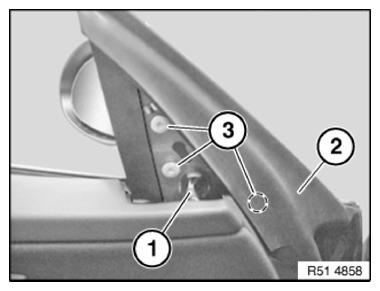

Disconnect plug connection (1).

Fold seal (2) to one side slightly and release screws (3).

Tightening torque 51 16 1AZ .

Installation:

Rubber grommet for plug connection (1) must be correctly seated on door.

Seal (2) must be correctly seated on door trim panel and door.

Fig 3: Identifying Plug Connection, Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

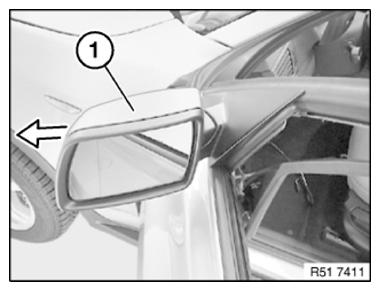

Remove mirror (1) outwards.

Installation:

Check function.

Fig 4: Removing Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Change MIRROR GLASS or replace if necessary.
Change exterior mirror HOUSING or replace if necessary.
