51 48 060 Removing and installing/replacing sound insulation in left or right front door

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Instructions for SOUND INSULATION are an essential part of these repair instructions and must be followed without fail.
Do not detach sound insulation in jerks (risk of damage).
Ensure watertightness of sound insulation after every repair (water ingress).

Necessary preliminary tasks:

Remove DOOR TRIM PANEL

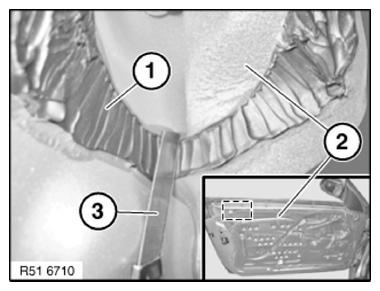

IMPORTANT: When cutting through sealing bead (1), do not damage sound insulation (2) and if necessary cable.
With a suitable sharp cutting tool (3) cut through sealing bead (1) of sound insulation (2) in the area to be detached.

Fig 1: Identifying Sealing Bead And Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

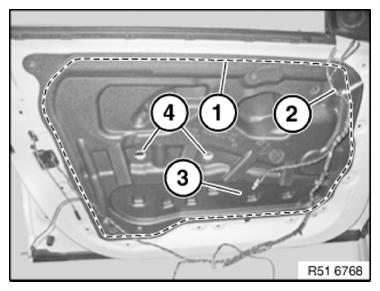

Position of sealing bead (1).

Unscrew clamps (4).

Feed out sound insulation (3) at cable (2) and remove.

Fig 2: Identifying Sealing Bead, Clamps And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

When refitting

Damaged sound insulation must be replaced.

Lay butyl rope with Ø 3 mm (sourcing reference:

BMW Parts Department) onto the original butyl rope.

Replacement

Remove residual butyl at the door and clean the adhesive area.

Air drying time: 1 minute

IMPORTANT: Bonding surface must be dry and free of dust and grease.
Once it has been cleaned, do not touch the adhesive area with bare hands.

Lay 6 mm dia. butyl rope (sourcing reference: BMW Parts Department) in specified adhesive area onto the sound insulation.

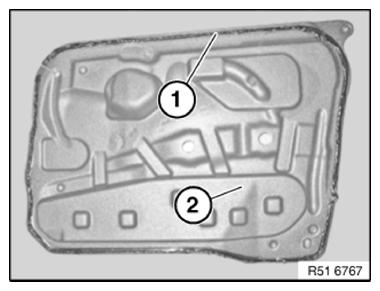

NOTE: Position of butyl rope (1) on sound insulation (2).

Fig 3: Identifying Butyl Rope And Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

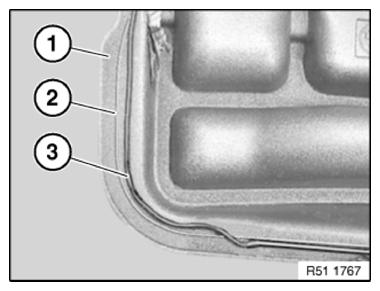

NOTE: A mark (2) is provided all round on the sound insulation (1).
Butyl rope (3) rests on or inside the marking (2).
Heat butyl rope (3) (hot air blower) and press sound insulation (1) on firmly all-round.
Contact pressure with hand roller: approx. 20 N/cm²
Manual contact pressure: approx. 10 N/cm²

NOTE: Firm thumb pressure has approx. 30 N/cm²

Fig 4: Identifying Butyl Rope And Mark On Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.
