51 41 000 Removing and installing (replacing) front left or right door trim panel

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

Necessary preliminary tasks:

Remove DECORATIVE STRIP FROM DOOR TRIM PANEL

IMPORTANT: Adhere to the correct sequence without fail, otherwise the door trim panel will break.
Do not under any circumstances pull on map pocket.

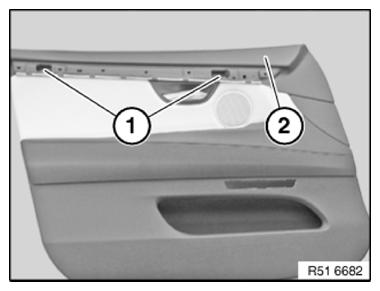

Release screws (1).

Tightening torque 51 41 1AZ .

Fig 1: Identifying Screws Of Door Trim Panel

G09879477

Courtesy of BMW OF NORTH AMERICA, INC.

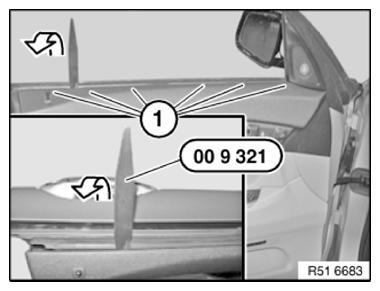

Starting in B-pillar area, unclip shoulder with special tool 00 9 321 from clamps (1).

Fig 2: Unclipping Shoulder

G09879478

Courtesy of BMW OF NORTH AMERICA, INC.

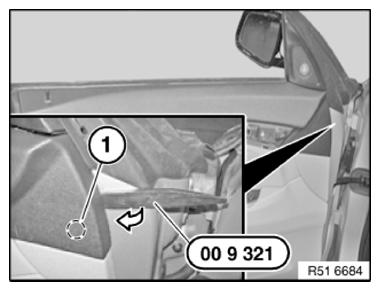

Unclip clamp (1) with special tool 00 9 321 .

Fig 3: Unclipping Clamp

G09879479

Courtesy of BMW OF NORTH AMERICA, INC.

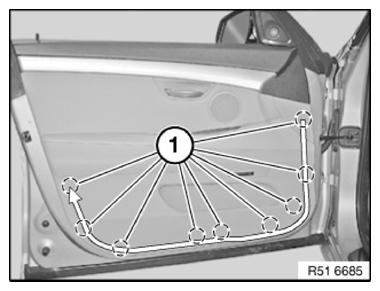

Unclip clips (1) in direction of arrow by gripping with hand.

Fig 4: Unclipping Clips

G09879480

Courtesy of BMW OF NORTH AMERICA, INC.

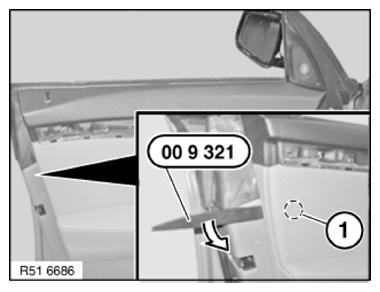

Unclip clamp (1) with special tool 00 9 321 .

Fig 5: Unclipping Clamp

G09879481

Courtesy of BMW OF NORTH AMERICA, INC.

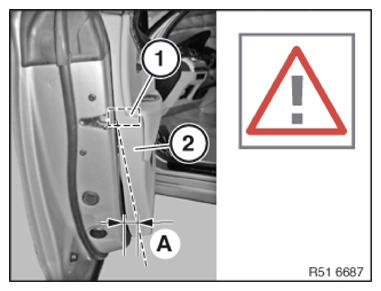

IMPORTANT: Risk of damage to door trim panel (2) in area (1).
Do not lever off door trim panel (1) over dimension (A) from inner door panel.
A = 30 mm

Fig 6: Identifying Door Trim Panel Dimension

G09879482

Courtesy of BMW OF NORTH AMERICA, INC.

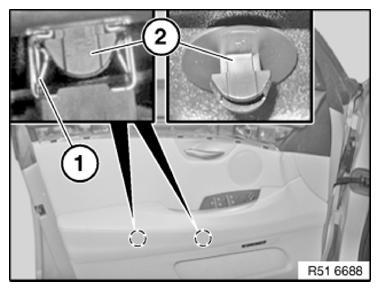

IMPORTANT: Disconnection of center clamp (1) from twist knob (2) is only possible by shifting it.

Fig 7: Identifying Center Clamp And Knob

G09879483

Courtesy of BMW OF NORTH AMERICA, INC.

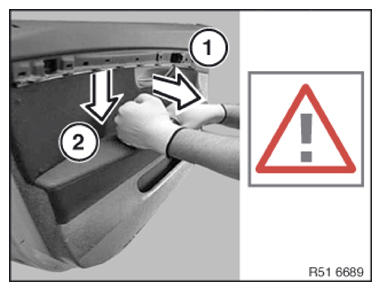

IMPORTANT: Pull door trim panel by handle recess gently in direction (1), gently strike armrest with fist in direction (2) to release door trim panel from inner door panel.

Fig 8: Pulling Door Trim Panel

G09879484

Courtesy of BMW OF NORTH AMERICA, INC.

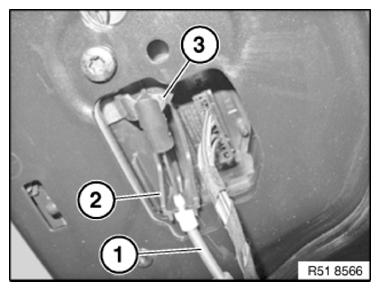

Disengage Bowden cable (1) for release lever first at counter support (2) and then at door lock (3).

Unlock and disconnect all plug connections, then remove door trim panel.

Fig 9: Disengaging Bowden Cable

G09879485

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

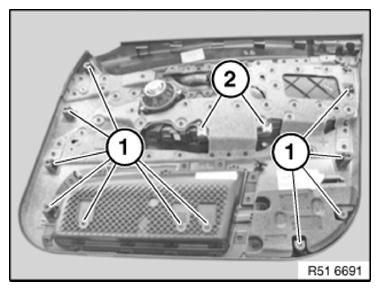

Faulty clips (1) color: grey.

Check center clamp (2) for damage, replace if necessary.

Fig 10: Identifying Clips And Center Clamp

G09879486

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

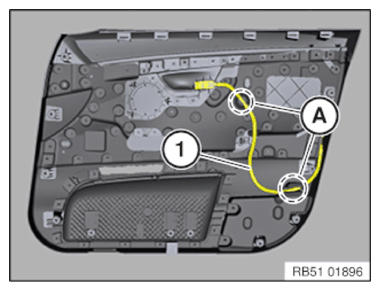

Make sure Bowden cable (1) is in correct position!

Feed in Bowden cable (1) in area (A) correctly into door trim panel.

An incorrectly routed Bowden cable can cause door lock malfunctions.

Fig 11: Identifying Bowden Cable Area

G09879487

Courtesy of BMW OF NORTH AMERICA, INC.

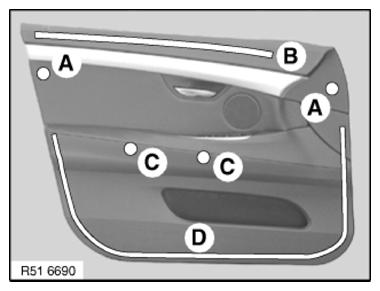

Fit door trim panel, make sure clamps are correctly seated and press down in sequence A - D.

Fig 12: Identifying Door Trim Panel

G09879488

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

After assembling the door trim panel proceed as follows:

Open side window
Lock with ignition key
Check for ease of movement on locking button linkage
If necessary, align linkage
