51 47... Removing and refitting/replacing left or right privacy screen

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove SCREEN
Remove SCREEN DAMPER UNIT

NOTE: For greater clarity, cover is shown removed in illustration.

Remove cover and undo screws (1).

Tightening torque 51 47 12AZ .

Maneuver out privacy screen (2), pulling it outwards.

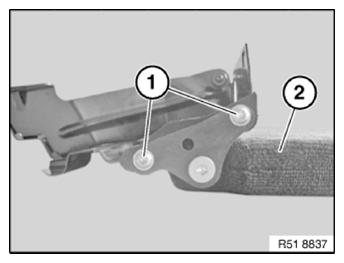

Fig 1: Identifying Cover And Undo Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guide bush (1) must not be damaged.

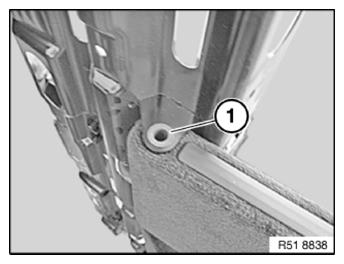

Fig 2: Identifying Guide Bush

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Remount OUTER SCREEN COVERS .
